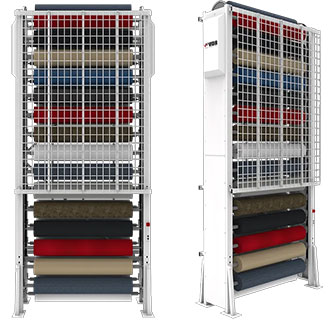

The Vidir Industrial Rolled Goods Carousel is an automated storage system for rolls of fabric and textiles that fully utilizes overhead space for storage.

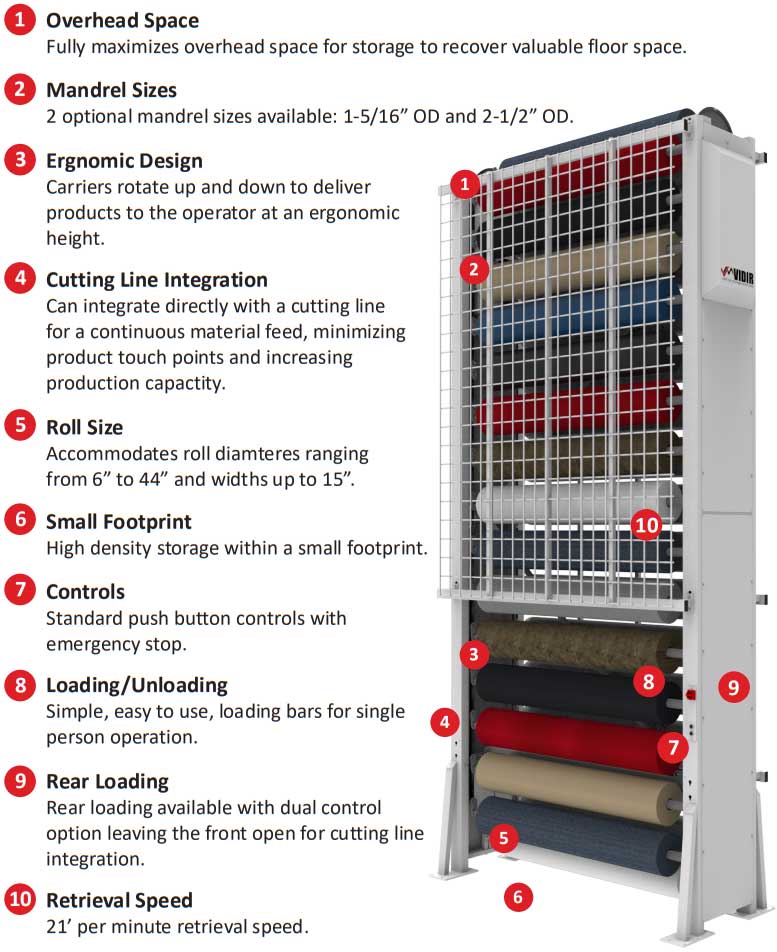

Every roll is easily and quickly accessible as the carousel rotates up or down to deliver fabric to the operator at an ergonomic height. The carousel can integrate directly with a cutting line for a continuous material feed, minimizing product touch points and increasing production capacity. The Industrial Rolled Goods Carousel can be operated by a single person.
| A Textile Carousel Package includes the following |
|
| Controls | |
| Forward/Reverse Push Buttons w/Security Keypad and E-Stop | |
| Overall Capacity | |
| 13,000 lbs. | 5,896 kg chain rating | |
| Carrier Capacity | |
| 1,000 lbs. | 454 kg weight capacity | |
| Off-Balance | |
| 15% Off-Balance load capacity | |
| Retrieval Speed | |
| 21′ | 5057mm per minute | |
| Electrical | |
| 208V/230V, 15 Amp, 60 Hz, 3 Phase | |
| 460V/480V, 10 Amp. 60 Hz, 3 Phase | |
| Other electrical options available upon request | |
| Standard Colors | |
| Panels, Structure – White Carriers, Chain Path – Grey Other colors available upon request |
|
| cCSAus Mark | |
| 2 Year Manufacturer’s Warranty | |
| Specifications for Textile Carousel |
|
| Unit Specifications | |
| Width | max. 17’ 7” (5,359 mm) |
| Depth | 7’ 6” - 30’ 0” (2,286 - 9,144 mm) |
| Height | 2’ 8” - 7’ 5” (813 - 2,261 mm) |
| Roll Specifications | |
| Roll Width | max. 180” (4,572 mm) |
| Roll Diameter | 6” - 44” (152 / 1,118 mm) |
| Capacity Specifications | |
| Load Capacity | 13,000 / 34,000 lbs (5,897 / 15,422 kg) |
| Load per Carrier | max. 3,000 lbs (1,361 kg) |
| Unit Imbalance | 1,950 - 8,000 lbs (885 - 3,629 kg) |
| Retrieval Speed | 21 ft/min (8,077 mm/min) |
