Vidir’s Bar Stock / Linear Vertical Lift System (VLS) is an automated storage and retrieval system (AS/AR) that utilizes an elevator to climb the front of the tower to deposit and retrieve drawers weighing up to 5,000 lbs and deliver them directly to ground level for further processing, increasing material storage and flow. The result is a safe and effective storage system designed to SIL3 / CAT4 / PL e safety standards that will save valuable floor space, eliminate redundant processes, and improve workplace safety.

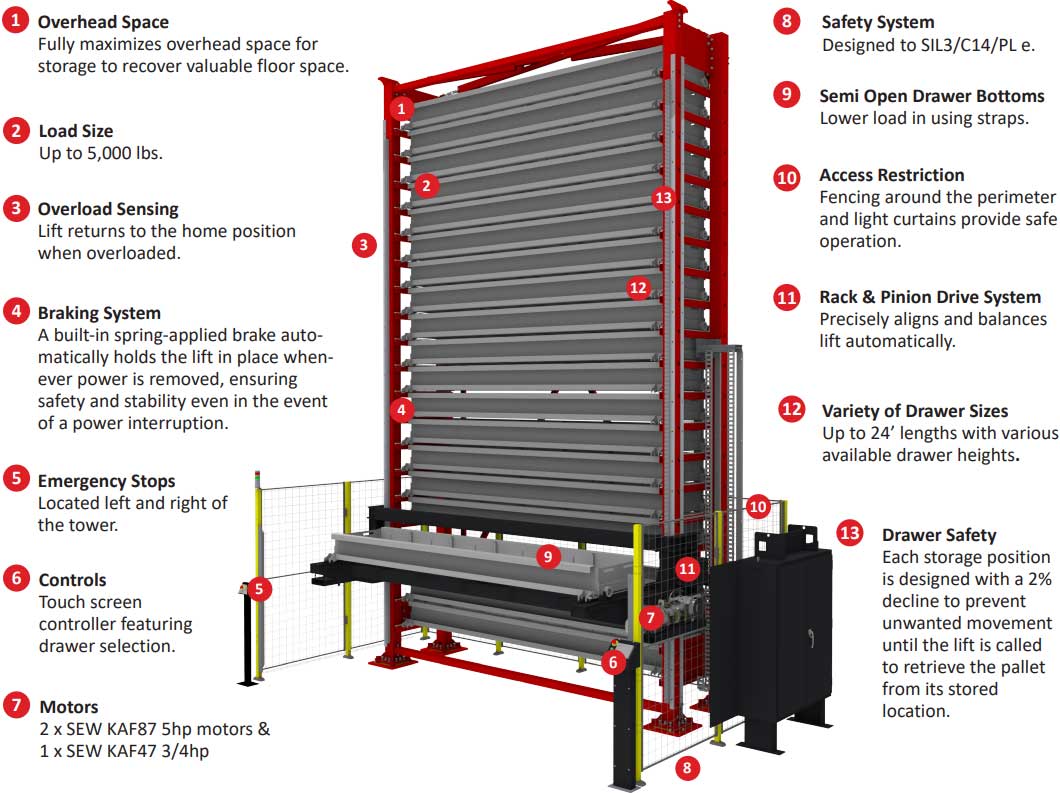

| A Bar Stock Vertical Lift System includes the following |
|
| Controls | |
| Automatic controls featuring drawer selection | |
| Emergency Stops | |
| Located left and right of the tower | |
| Overload Sensing | |
| Lift returns to the home position when activated | |
| Access Restriction | |
| Fencing around the perimeter and light curtains prevents access during operation | |
| Braking System | |
| Features a process brake and redundant brake engaged with the safety system | |
| Position Safety | |
| Each drawer is individually locked in place until released by the elevator | |
| Motors | |
| 2 x 5 HP Motors 1 3/4 HP Motor |
|
| Fully Enclosed | |
| Safety System | |
| Designed to SIL3 / CAT4 / PL e | |
| cCSAus Mark | |
| 2 Year Manufacturer’s Warranty | |
| Specifications for Bar Stock Vertical Lift System |
|
| Elevator Specifications | |
| Storage Width | 120” - 294” (3,048 mm - 7,468 mm) |
| Storage Depth | 24” (610 mm) |
| Max Height per Drawer | 10” - 18” (254 mm - 457 mm) |
| Max Load per Drawer | 5,000 lbs (2,268 kg) |
| Lifting Speed | 22 ft/min (6.7 m/min) |
| TowerSpecifications | |
| System Height | 12’ - 28’ (3.65 m - 8.5 m) |
