UMAX Range Picker

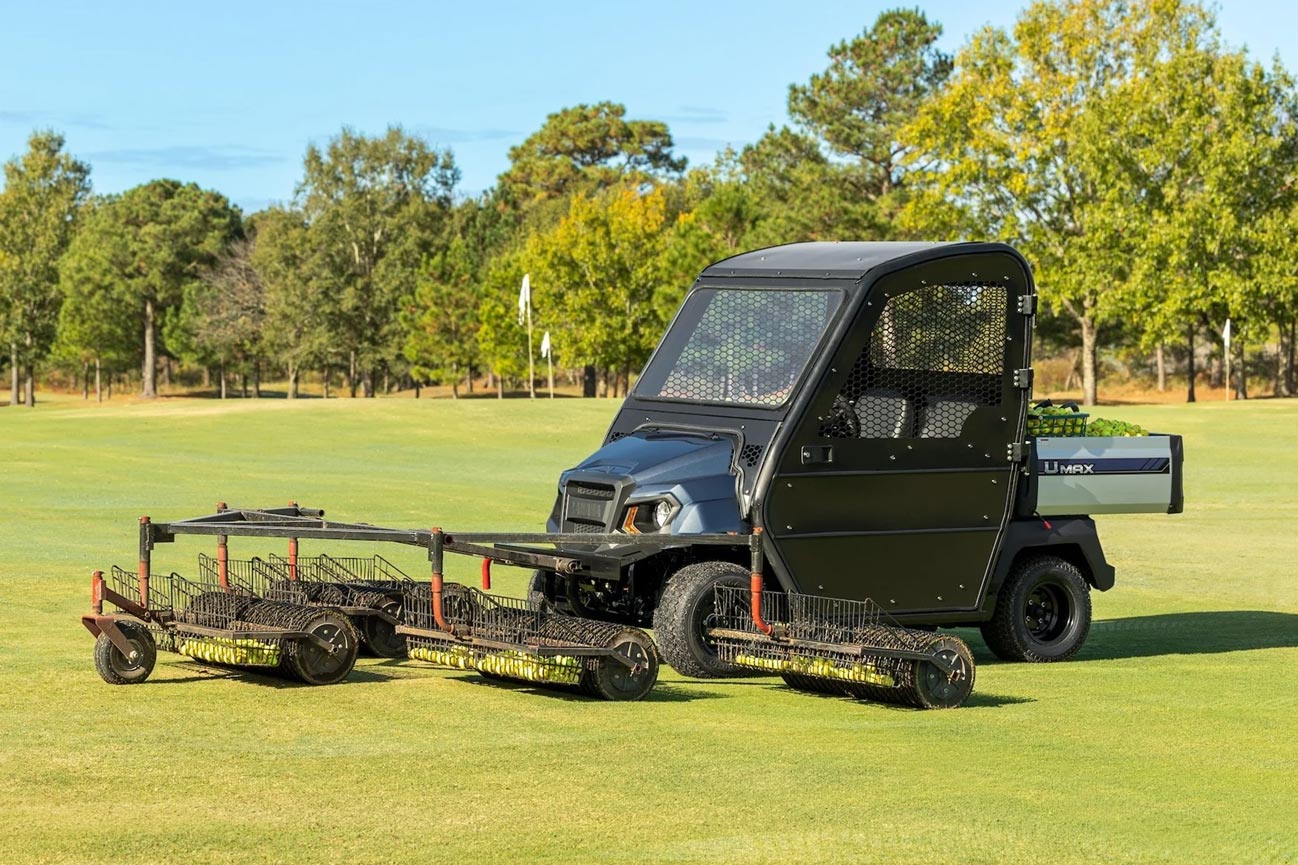

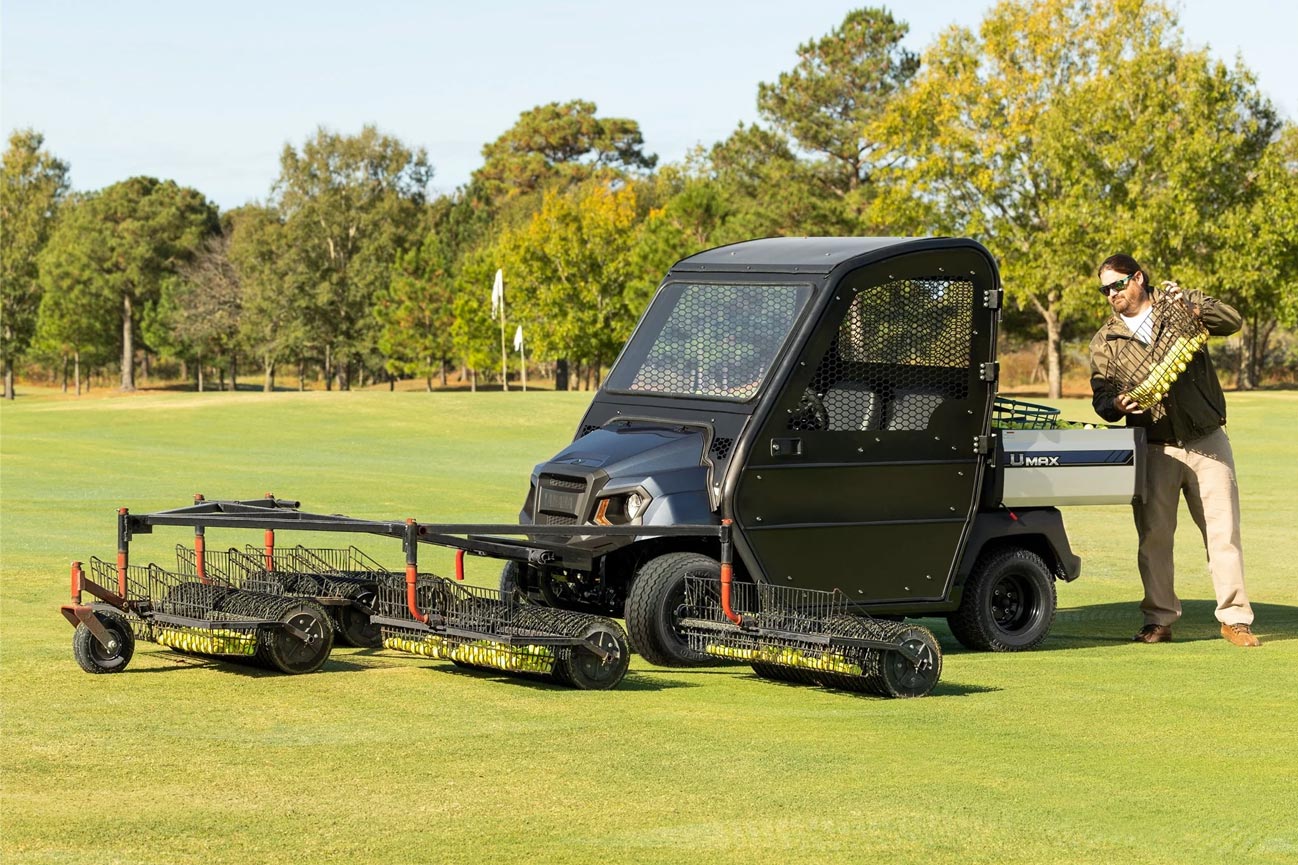

Yamaha UMAX Range Picker

Get the job done with RELIABLE POWER and PROTECTION

Outfitted with a strong diamond-webbed steel cage and an impact-resistant front windshield, discover the same Range Picker you already know and love—but this time, with an upgraded 402cc engine for premium torque and power.

Need more information?
Auto Parts Inquiry


Fuel System: Electronic Fuel Injection

Engine type: Yamaha Built 402cc, Low Emission Single Cylinder 60deg Incline OHV

Lubrication System: Splash-style positive oil lubrication

Oil Capacity: 1.16 U.S. quart (1.1 liter, 1100cc), Yamalube 10W-30 liter

Cooling System: Forced air

Starting System: Starter generator with pedal start system


Dry Weight 421.8 kg
Cargo Bed Capacity 300 lbs
Towing Capacity 800 lbs
Cargo Bed Size 33.2" L x 45.9" W x 11.9" H
Fuel Tank Capacity (Gas) 20.0 liters (5.2 U.S. gal)
Tire Size 20x10x10 4ply Monitor K389 (front) K500 (rear)
Seating Capacity 2 persons
Available Model Colours Glacier Metallic: Jasper, Carbon, Aqua Blue, Noble Orange, Evergreen
Available Seat Colour Black
Available Suntop Colour Black



Overall Length 111.45 in (283.1 cm)
Overall Width 49.33 in (125.3 cm)
Overall Height (with suntop) 71.81 in (182.4 cm)
Overall Height (without suntop) 48.54 in (123.3 cm)
Wheelbase 66.18 in (168.1 cm)
Front Wheel Tread 39.96 in (101.5 cm)
Rear Wheel Tread 40.19 in (102.1 cm)
Minimum Ground Clearance 4.56 in (11.6 cm)
Floor Board Height 295 mm (11.6 in)
