ChargePoint CPF50
Efficient charging for light-duty fleets
The CPF50 is a proven fleet charging station and has long been used by light-duty fleet operators that have made the transition to electric. Smart design and rigorous testing guarantee that the CPF50 can stand up to the daily needs of light-duty fleets.
Need more information?
Common Applications
What fleets can benefit from ChargePoint CPF50? ChargePoint® CPF50 is ideal for depot charging for electric cars, pickups and vans.
- Motor pool
- Company vehicles
- Service vehicles
Features
Fast, rugged and reliable - Get the most out of your investment with a proven asset designed for the unique needs of fleets.
- Charge at up to 12 kW and set the station amperage that’s right for your installation, from 16 amps to 50 amps.
- Tailor charging to your needs with flexible hardware configurations.
- Count on stations engineered to be rugged enough to withstand heavy daily use in all types of weather.
- Save energy and costs with ENERGY STAR® certified charging stations.
Operate with confidence - Powerful cloud-based software, configurable hardware and expert services ensure success in every stage of your transition to electric.
- Get real time-visibility on vehicle readiness, power usage and station status.
- Maximize savings and reduce install costs with power management.
- Control who uses charging stations with assigned RFID cards.
- Simplify complexity and manage with ease using an all-in-one solution.
Specifications
| Mounting | __ | Pedestal, wall |
| Connector/port type | J1772™ | |
| Number of ports | Single, dual | |
| Cable length | 18' (5.5 m), 23' (7 m) | |
| Electrical output | 1.9 kW to 12 kW based on amperage and port count | |
| Connectivity | Cellular 4G LTE, Wi-Fi LAN | |
| Authentication | RFID, NFC (Tap to Charge), remote via mobile | |
| Display | None | |
| Network protocol | OCPP 1.6 | |
| Operating temperature | -40°F to 122°F (-40°C to 50°C) | |
| Station enclosure | Type 3R per UL 50E | |
| Safety and compliance | UL and C-UL listed; complies with UL2594, UL2231-1, UL 2231-2. NEC Article 625–compliant. For Canada CSA C22.2, No. 280, 281.1, 281.2, CED UL and C-UL listed per UL916 Energy Management Equipment. |
|
| Certifications | ENERGY STAR® certified |

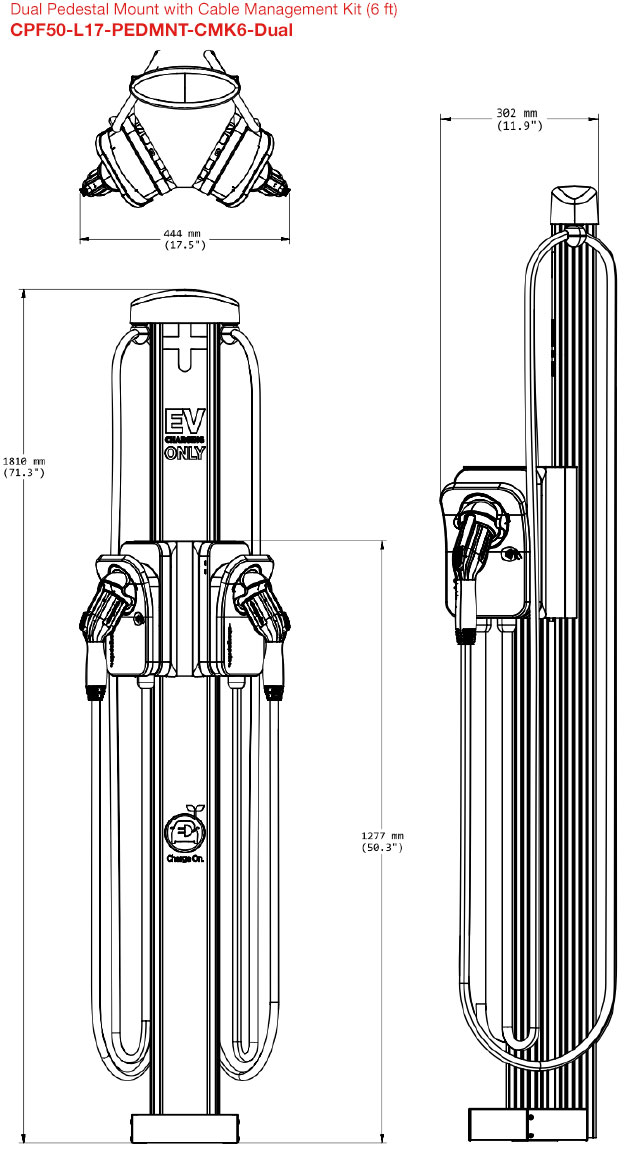

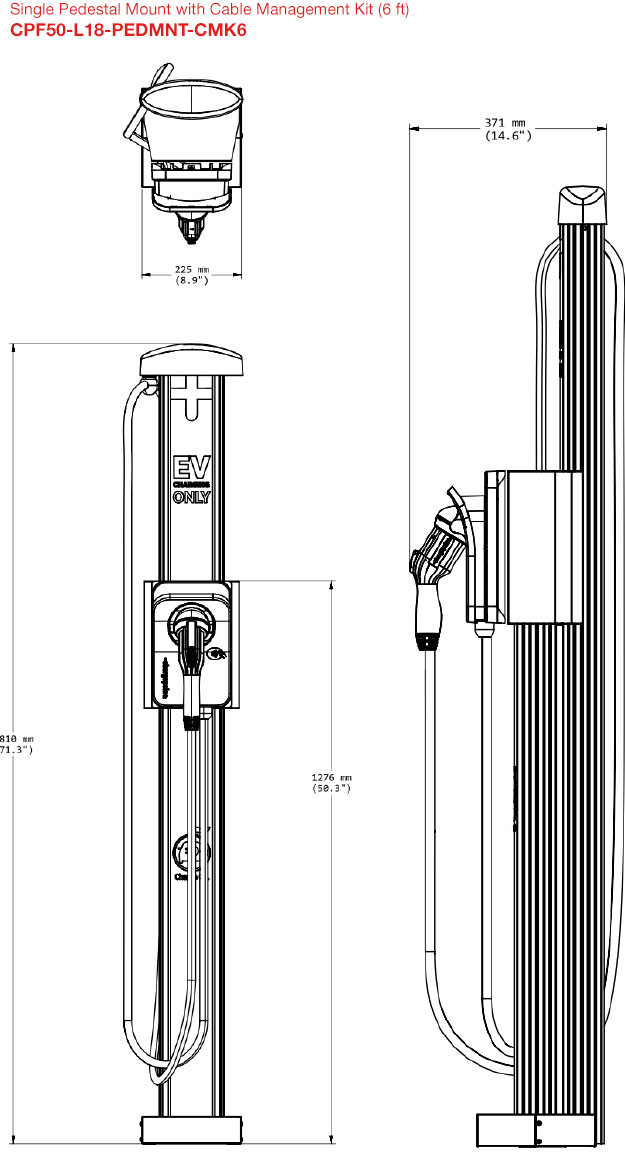

Dimensions
