ChargePoint Express
High Power in a Small Footprint
ChargePoint® Express 250 is based on industry-leading DC fast charging technology, engineered to fast charge current and next-generation electric cars, buses and trucks. At the heart of each Express 250 are 2 self-contained, easily swappable AC to DC Power Modules. This innovative design ensures that in the rare instance one module goes down, the station remains operational. It can be installed as a stand-alone station or in a paired configuration providing up to 25% more power than a 50kW station and 40% more with a paired configuration. When paired, smart power sharing and power allocation policies determine how much energy is allotted to each station in order to deliver flexible fast charging to two vehicles at a time.
Thoughtfully Designed
The Express 250’s interactive LCD screen lets drivers easily interact with instructions, information or promotions. A wide-format LED display makes availability and status easy to see, even at a distance. Up to two connector types allow charging of any electric vehicle and an advanced cable management system provides extra reach, while keeping cables off the ground. Fault-tolerant design, remote monitoring and intelligent diagnostics provide proactive alerts to prevent station outages, eliminating
driver frustration.
Smart & Fully Supported
Built-in cellular networking makes remote management of the Express 250 easy. ChargePoint Cloud Services lets station owners customize the stations to meet their specific requirements, including setting pricing policies for public charging or making stations available to certain driver groups such as employees only. Automatic software upgrades ensure the latest features are always available. The ChargePoint mobile app and in-dash systems tie everything together: drivers can locate stations, instantly begin charging, check their charging status, track their charging activity over time and, depending on the configuration, get in line to charge at busy stations
Need more information?
Features
High Availability and Serviceability
The Express 250 has minimal moving parts, increasing reliability and minimizing ongoing maintenance. Modular components can be installed in the field without any specialized tools or expertise.
- Instrumentation for remote monitoring, intelligent diagnostics and machine learning
- Configurable levels of Power Module redundancy and duty cycle management
Universal Compatibility
The Express 250 supports battery packs from 200V to 1000V, ensuring both legacy and future electric vehicles can always be charged.
- Compatible with international electrical grid standards and vehicles
- Supports current and future global standards, including: CCS1, CCS2 and CHAdeMO
Cloud-Based Station Management
The Express 250 lets station owners easily monitor the stations remotely, tailor pricing to different driver groups and configure power to manage electrical costs or meet site-specific power requirements. Automatic software updates instantly provide the latest features and enhancements to both drivers and station owners.
- 24/7 station monitoring
- Multiple authentication and/or payment methods
Specifications
Station Electrical Input
| Input Rating | __ | 400V AC, 3-phase, 96A, 50 Hz 480Y/277V AC, 3-phase, 80A, 60 Hz |
| Wiring | L1, L2, L3, Neutral & Earth |
Station Electrical Output
| Max Output Power | __ | 62.5 kW |
| Output Voltage, Charging | 200–1,000V DC | |
| Max Output Current | 156A | |
| Max Modules per Station | 2 |
Paired Station Electrical Output
| Paired Max Output Power | __ | 125 kW |
| Paired Max Output Current | CCS1: 174A or 200A CCS2: 200A CHAdeMO; US: 140A, EU: 125A |
Power Module
| Max Output Power | __ | 31.25 kW |
| Max Output Current | 78 A | |
| Power Conversion Efficiency | > 95% | |
| Power Factor | 0.99 at full load | |
| Harmonics | iTHD < 5% (Complies with IEEE 519 Requirements) | |
| Power Module Cooling | Liquid Cooling Technology |

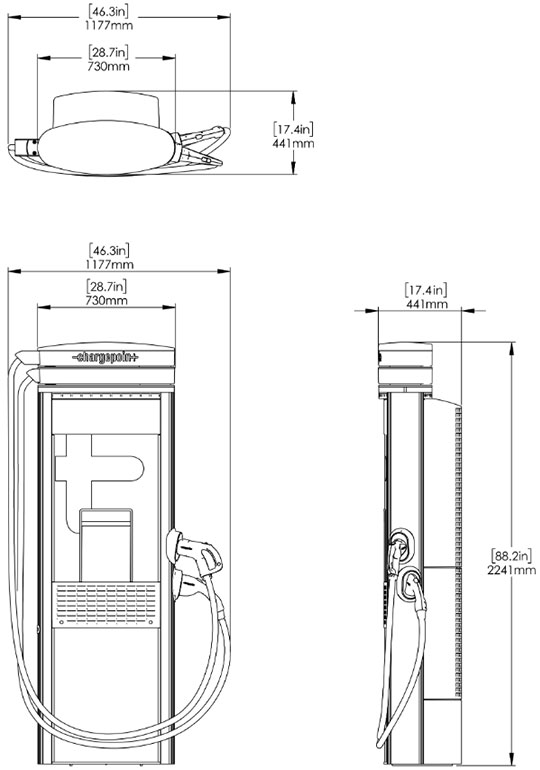

Dimensions
