ChargePoint Home Flex
Everything you need in a home EV charger
ChargePoint® Home Flex combines speed, intelligence and flexibility to deliver a powerful home charging solution. From the company that brings you one of the nation’s largest EV charging networks, Home Flex lets you charge your EV in the comfort of your own home.
Need more information?
Features
Fast and powerful
Charges up to 9X faster than with a standard 110V outlet, delivering up to 37 miles of driving range per hour.
Ready for the future
Supports flexible current settings from 16A up to 50A to charge every EV model on the road today ... and tomorrow.
Safe and efficient
UL listed and ENERGY STAR® certified for optimal reliability, safety and efficiency.
Flexible and durable
The high-quality 23-foot cable cable is easy to hang up when you're not charging and stays pliable even in cold weather.
Indoors or out
Sleek, thoughtful design with a small footprint to easily fit any garage or exterior location.
Charge with confidence
Backed by a 3-year warranty and 24/7 customer support.
Specifications
| AC output power rating | __ | Level 2 Charging Station |
| AC input power rating | 100% aluminum, NEMA 4X, Designed for outdoor or indoor installation | |
| Charging cable length | Carbon and Tungsten with high resistance coating | |
| Connector type | Included | |
| Local Area Network | Included | |
| Safety and compliance | 240 V @ 60 Hz | |
| ENERGY STAR® certified |
6.2 - 7.2 kW |
| Input Cord | __ | NEMA 6-50 or NEMA 14-50 |
| AC Power Output Rating | Maximum 12 kW (240V AC * 50A). Output amperage adjustable via mobile app to 16A, 24A, 32A, 40A, 48A, 50A | |
| AC Power Input Rating | 208/240V AC 60 Hz single phase @ 16A, 24A, 32A, 40A, 48A, 50A | |
| Required Service Panel Breaker | Dedicated Dual Pole rated for 125% of maximum load (ex: 50A breaker for 40A output) | |
| Service Panel GFCI | External GFCI may conflict with internal GFCI (CCID). For hardwired installations, use a non-GFCI circuit breaker | |
| Power Wiring | 3 Wire – L1, L2 plus Earth (no neutral) | |
| Charging Cable Length | 7010.4 mm (23 ft) | |
| Connector Type | SAE J1772TM | |
| Power Measurement Accuracy | +/- 2.0% from 2% to full scale | |
| Power Report/Store Interval | 15 minute aligned to hour |

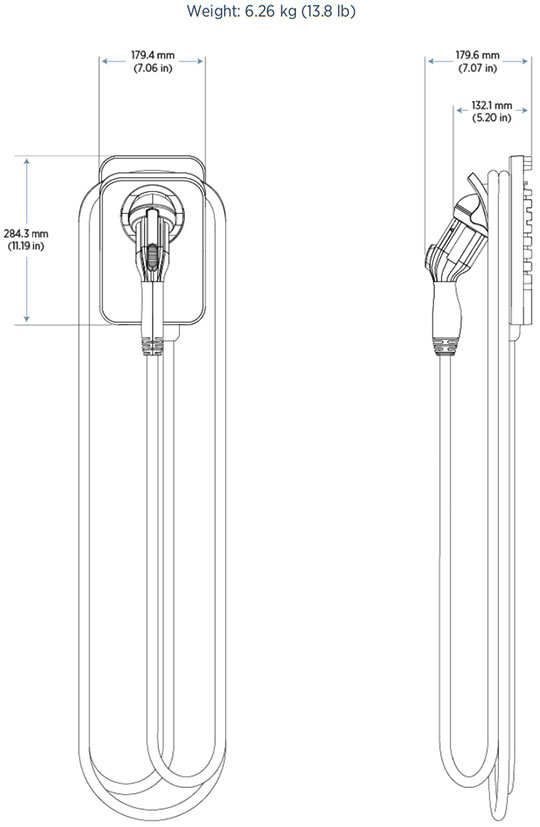

Dimensions
