FLO CoRe+ MAX
CoRe+™ Series
The versatile, reliable CoRe+™ Series provides fast charging just about anywhere: a workplace, a multi-residential unit, or electrifying a fleet.
Need more information?
Common Applications
The CoRe+ MAX is the preferred charging solution for a wide variety of applications. The alternative current (AC) puts less stress on your vehicles’ batteries compared to direct current (DC) fast chargers, ultimately extending the lifespan of your batteries and your vehicle.
Fleet
Ideal for fleet managers who wish to grow their EV fleets without expanding their electrical infrastructure while maintaining the operational costs at an affordable level.
Workplace
Ideal for companies looking to offer an EV charging service to their employees, and looking for a solution that can evolve at the same rate as the demand for the service while maintaining reasonable installation and operation costs.
Features
Fastest L2 Charger
- Maximum power output of up to 19.2 kW (80 amps)
- Charges up to 2.7x faster than a typical level 2 charging station
- 77% of the speed for only 30% of the cost of a 25 kW DC fast charger
Future-proof
- Compatible with 100% of BEV or PHEV available in North America
- Customizable power levels using an integrated 10-position rotary switch
- Ready to accommodate current and next-generation EVs
Low Total Cost of Ownership
- Install up to 4 CoRe+ MAX stations for the cost of one DC Fast Charger
- Fully integrates with the original CoRe+
- FLO stands behind the quality of its products and offers a 1-year limited warranty on the CoRe+ MAX
Specifications
| Product | _ | CoRe+ MAX |
| Aluminum casing | Enclosure Type 3R | |
| Charging connector | SAE J1772 | |
| Cable | 7.62 m / 25' (19' with optional CMS) | |
| Input | 208 VAC or 240 VAC for each charging station | |
| Charging power | 1.2 kW to 19.2 kW (maximum configurable by software) | |
| Output current | 6A to 80A (maximum configurable by software and adjustable via a rotary switch) |
|
| Integrated GFCI | 20 mA, auto reset (3 attempts at 15-minute intervals) | |
| Frequency | 60 Hz | |
| Operating/storage temp. | -40° C to 50° C | |
| Weight | Charging station: 9.5 kg / 27 lb Pedestal: 14.5 kg / 32 lb |
|
| Humidity | Up to 95% (non-condensing) | |
| Card reader | ISO 14443 A/B, ISO 15693, NFC | |
| Communication interface | ZigBee - IEEE 802.15.4 meshed network | |
| Networking | Cellular – 4G/LTE (gateway is installed separately for optimal performances) | |
| Pending Certifications | CSA- C22.2 No. 280 / UL 2594, CSA C22.2 No 281.1 and 281.2 / UL 2231-1 and 2231-2 | |
| EMI compliance | ICES-003 (A) |

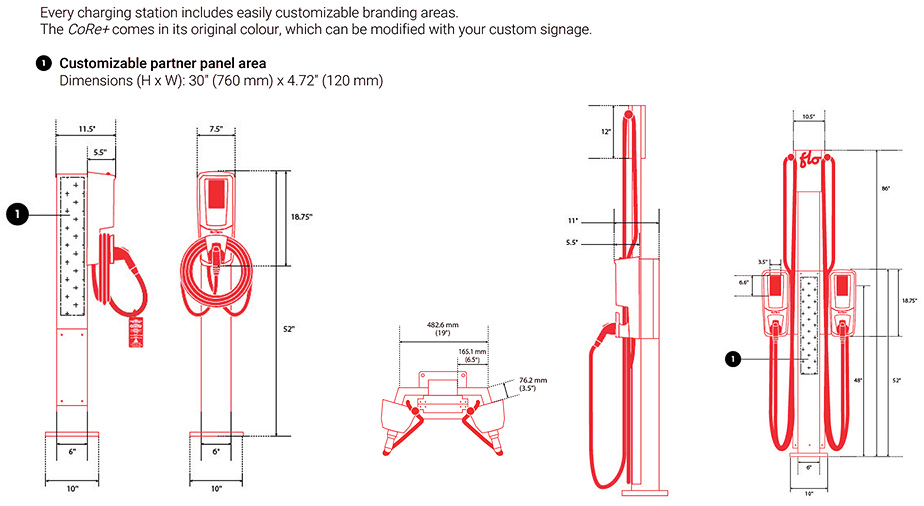

Dimensions
