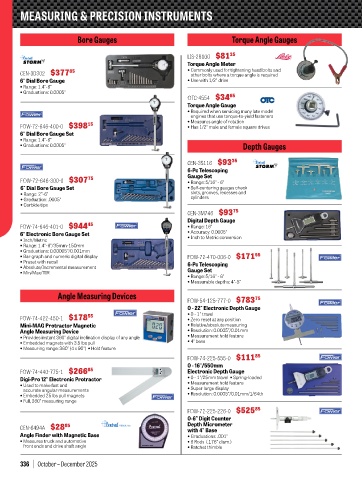

Page 336 - Q4 2025 Stephenson Equipment Catalogue

MEASURING & PRECISION INSTRUMENTS

Bore Gauges Torque Angle Gauges

LIS-28100 $81 35
Torque Angle Meter
CEN-3D302 $377 85 • Commonly used for tightening head bolts and
other bolts where a torque angle is required
6" Dial Bore Gauge • Use with 1/2" drive
• Range: 1.4"-6"
• Graduations: 0.0005"
OTC-4554 $34 65
Torque Angle Gauge
• Required when servicing many late model
engines that use torque-to-yield fasteners
FOW-72-646-400-0 $398 15 • Measures angle of rotation
• Has 1/2" male and female square drives
6" Dial Bore Gauge Set
• Range: 1.4"-6"
• Graduations: 0.0005" Depth Gauges

CEN-3S116 $93 35
6-Pc Telescoping
FOW-72-646-300-0 $307 75 Gauge Set
• Range: 5/16" - 6"
6" Dial Bore Gauge Set • Self-centering gauges check
• Range: 2"-6" slots, grooves, recesses and
• Graduation: .0005" cylinders
• Carbide tips
CEN-3M746 $93 75
Digital Depth Gauge
FOW-74-646-401-0 $944 45 • Range: 16"
6" Electronic Bore Gauge Set • Accuracy: 0.0005"
• Inch/Metric • Inch to Metric conversion
• Range: 1.4"-6"/35mm-150mm
• Graduations: 0.00005"/0.001mm
• Bar graph and numeric digital display FOW-72-470-006-0 $171 55
• Preset with recall 6-Pc Telescoping
• Absolute/Incremental measurement Gauge Set
• Min/Max/TIR
• Range: 5/16" - 6"
• Measurable depths: 4"-5"
Angle Measuring Devices FOW-54-125-777-0 $783 75

0 - 22" Electronic Depth Gauge
FOW-74-422-450-1 $178 55 • 0 - 1" travel
• Zero reset at any position
Mini-MAG Protractor Magnetic • Relative/absolute measuring
Angle Measuring Device • Resolution: 0.0005"/0.01mm
• Provides instant 360° digital inclination display of any angle • Measurement hold feature
• Embedded magnets with 3.5 lbs pull • 4" base
• Measuring range: 360° (4 x 90°) • Hold feature
FOW-74-225-555-0 $111 85
0 - 16"/550mm
FOW-74-440-775-1 $266 85 Electronic Depth Gauge
Digi-Pro 12" Electronic Protractor • 0 - 1"/25mm travel • Spring-loaded
• Used to make fast and • Measurement hold feature
accurate angular measurements • Super large display
• Embedded 25 lbs pull magnets • Resolution: 0.0005"/0.01mm/1/64th
• Full, 360° measuring range
FOW-72-225-226-0 $525 85
0-6" Digit Counter
CEN-6494A $28 85 Depth Micrometer
with 4" Base
Angle Finder with Magnetic Base • Graduations: .001"
• Measures truck and automotive • 6 Rods (.176" diam.)
front ends and drive shaft angle • Ratchet thimble

336 | October – December 2025
