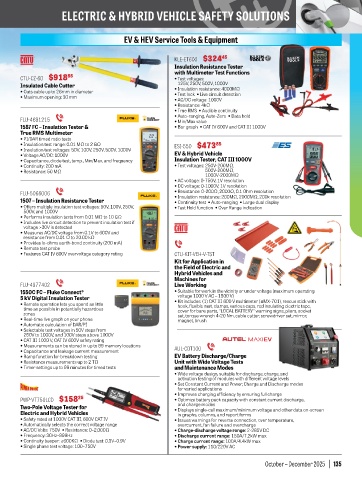

Page 135 - Q4 2025 Stephenson Equipment Catalogue

ELECTRIC & HYBRID VEHICLE SAFETY SOLUTIONS

EV & HEV Service Tools & Equipment

KLE-ET600 $324 45
Insulation Resistance Tester
CTU-CZ-60 $918 85 with Multimeter Test Functions
• Test voltages:
Insulated Cable Cutter 125V, 250V, 500V, 1000V
• Cuts cable up to 26mm in diameter • Insulation resistance: 4000MΩ
• Test lock • Live circuit detection
• Maximum opening: 30 mm
• AC/DC voltage: 1000V
• Resistance: 4kΩ
• True RMS • Audible continuity
FLU-4691215 P • Auto-ranging, Auto-Zero • Data hold
• Min/Max value
1587 FC – Insulation Tester & • Bar graph • CAT IV 600V and CAT III 1000V
True RMS Multimeter
• PI/DAR timed ratio tests
• Insulation test range: 0.01 MΩ to 2 GΩ ESI-550 $473 85
• Insulation test voltages: 50V, 100V, 250V, 500V, 1000V

• Voltage AC/DC: 1000V EV & Hybrid Vehicle
• Capacitance, diode test, temp., Min/Max, and frequency Insulation Tester, CAT III 1000V
• Continuity: 200 mA • Test voltages: 250V-200MΩ,
• Resistance: 50 MΩ 500V-200MΩ,
1000V-2000MΩ
• AC voltage: 0-750V, 1V resolution
• DC voltage: 0-1000V, 1V resolution
FLU-5066006 P • Resistance: 0-200Ω, 2000Ω, 0.1 Ohm resolution
1507 – Insulation Resistance Tester • Insulation resistance: 200MΩ, 2000MΩ, 200k resolution
• Continuity test • Auto-ranging • Large dual display
• Offers multiple insulation test voltages: 50V, 100V, 250V, • Test Hold function • Over Range indication
500V, and 1000V
• Performs insulation tests from 0.01 MΩ to 10 GΩ
• Includes live circuit detection to prevent insulation test if
voltage >30V is detected
• Measures AC/DC voltage from 0.1V to 600V and
resistance from 0.01 Ω to 20.00 kΩ
• Provides lo-ohms earth-bond continuity (200 mA) P
• Remote test probe
• Features CAT IV 600V overvoltage category rating CTU-KIT-VEH-V-TST
Kit for Application in
the Field of Electric and
Hybrid Vehicles and
Machines for
FLU-4977402 P Live Working
1550C FC – Fluke Connect® • Suitable for work in the vicinity or under voltage (maximum operating
5 kV Digital Insulation Tester voltage 1000 V AC – 1500 V)
• Remote operation lets you spend as little • Kit includes: (1) CAT III 600 V multimeter (#MX-701), rescue stick with
hook, flexible mat, clamps, various caps, red insulating electric tape,
time as possible in potentially hazardous cover for bare parts, "LOCAL BATTERY" warning signs, pliers, socket
zones set, torque wrench 4-20 Nm, cable cutter, screwdriver set, mirror,
• Real-time live graph on your phone magnet, brush
• Automatic calculation of DAR/PI
• Selectable test voltages in 50V steps from
250V to 1000V, and 100V steps above 1000V
• CAT III 1000 V, CAT IV 600V safety rating MAXIEV
• Measurements can be stored in up to 99 memory locations AUL-CDT100 P
• Capacitance and leakage current measurement
• Ramp function for breakdown testing EV Battery Discharge/Charge
• Resistance measurements up to 2 TΩ Unit with Wide Voltage Tests
• Timer settings up to 99 minutes for timed tests and Maintenance Modes
• Wide voltage design, suitable for discharge, charge, and
activation testing of modules with different voltage levels
• Set Constant Current and Power, Charge and Discharge modes
for varied applications
PWP-VT750LCD $158 25 • Improves charging efficiency by ensuring full charge
• Optimize battery pack capacity with constant current discharge,
Two-Pole Voltage Tester for and charge modes
Electric and Hybrid Vehicles • Displays single-cell maximum/minimum voltage and other data on-screen
in graphs, columns, and report forms
• Safety rated at 1000V CAT III, 600V CAT IV • Issues warnings for reverse connection, over temperature,
• Automatically selects the correct voltage range overcurrent, fan failure and overcharge
• AC/DC Volts: 750V • Resistance: 0~2,000Ω • Charge-discharge voltage range: 2-285V DC
• Frequency: 30Hz~999Hz • Discharge current range: 150A/7.2kW max.
• Continuity beeper: ≤600KΩ • Diode test: 0.3V~0.9V • Charge current range: 100A/4.4kW max.
• Single phase test voltage: 100~750V • Power supply: 110/220V AC
