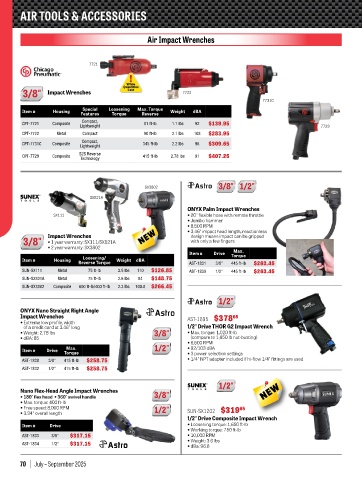

Page 70 - Q3 2025 Stephenson Equipment Catalogue
P. 70

AIR TOOLS & ACCESSORIES



                                                 Air Impact Wrenches



                              7721



        3/8"    Impact Wrenches                             7722

                                                                                      7731C
                            Special
        Item #    Housing  Features  Loosening   Max. Torque  Weight  dBA
                                               Reverse
                                     Torque
                            Compact,
        CPT-7721  Composite  Lightweight        81 ft-lb  1.1 lbs  92  $139.95                           7729
        CPT-7722   Metal    Compact             90 ft-lb  2.1 lbs  108  $283.95
        CPT-7731C  Composite  Compact,         345 ft-lb  2.2 lbs  96  $309.65
                           Lightweight
        CPT-7729  Composite  S2S Reverse       415 ft-lb  2.78 lbs  91  $407.25
                           Technology


                                                                        3/8"  1/2"
                                                SX3802
                              SX821A
                                                              ONYX Palm Impact Wrenches
                  SX111                                       • 20" flexible hose with remote throttle
                                                              • Jumbo hammer
                                                              • 8,500 RPM
                                                              • 3.46" impact head length, reactionless
                Impact Wrenches
         3/8"   • 1 year warranty: SX111/SX821A                design means impact can be gripped
                                                               with only a few fingers
                • 2 year warranty: SX3802
                                                                            Max.
                                                              Item #  Drive  Torque
                            Loosening/
        Item #    Housing  Reverse Torque  Weight  dBA        AST-1831  3/8"  445 ft-lb  $263.45
        SUN-SX111   Metal     75 ft-lb  2.5 lbs  110  $126.85  AST-1830  1/2"  445 ft-lb  $263.45
        SUN-SX821A  Metal     75 ft-lb  2.6 lbs  84  $148.75
        SUN-SX3802  Composite  600 ft-lb/400 ft-lb  2.3 lbs  100.8  $266.45

                                                                        1/2"
        ONYX Nano Straight Right Angle
        Impact Wrenches                                       AST-1895  $378 65
        • Extreme low profile, width
         of a credit card at 3.46" long                       1/2" Drive THOR G2 Impact Wrench
        • Weight: 2.78 lbs                         3/8"       • Max. torque: 1,020 ft-lb
                                                               (compare to 1,650 lb nut-busting)
        • dBA: 85                                             • 6,500 RPM
                      Max.
        Item #  Drive  Torque                      1/2"       • 92/103 dBA
                                                              • 3 power selection settings
        AST-1838  3/8"  415 ft-lb  $258.75                    • 1/4" NPT adapter included if hi-flow 1/4" fittings are used
        AST-1832  1/2"  415 ft-lb  $258.75
                                                                        1/2"
        Nano Flex-Head Angle Impact Wrenches
        • 180° flex head  • 360° swivel handle     3/8"
        • Max. torque: 400 ft-lb
        • Free speed: 8,000 RPM                    1/2"       SUN-SX1202  $319 65
        • 3.34" overall length
                                                              1/2" Drive Composite Impact Wrench
        Item #   Drive                                        • Loosening torque: 1,650 ft-lb
                                                              • Working torque: 750 ft-lb
        AST-1833  3/8"  $317.15                               • 10,000 RPM
        AST-1834  1/2"  $317.15                               • Weight: 3.6 lbs
                                                              • dBa: 96.8

        70  |  July – September 2025
