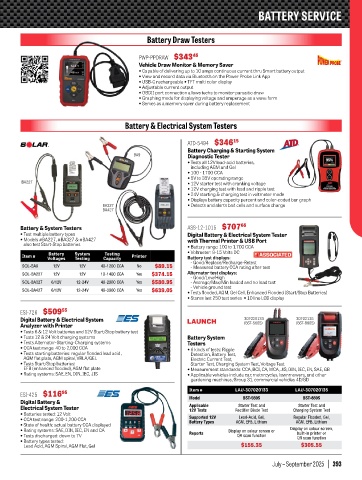

Page 393 - Q3 2025 Stephenson Equipment Catalogue

BATTERY SERVICE

Battery Draw Testers

PWP-PPDRAW $343 45
Vehicle Draw Monitor & Memory Saver
• Capable of delivering up to 10 amps continuous current thru Smart battery output
• View and record data via Bluetooth on the Power Probe Link App
• USB-C rechargeable • TFT multi color display
• Adjustable current output
• OBDII port connection allows techs to monitor parasitic draw
• Graphing mode for displaying voltage and amperage as a wave form
• Serves as a memory saver during battery replacement

Battery & Electrical System Testers

ATD-5494 $346 15
Battery Charging & Starting System
BA9 Diagnostic Tester
• Tests all 12V lead-acid batteries,
including AGM and Gel
• 100 - 1700 CCA
• 5V to 33V operating range
BA227 • 12V starter test with cranking voltage
• 12V charging test with load and ripple test
• 24V starting & charging test in voltmeter mode
• Displays battery capacity percent and color-coded bar graph
BA327 • Detects and alerts bad cells and surface charge
BA427

Battery & System Testers ASS-12-1015 $707 65
• Test multiple battery types Digital Battery & Electrical System Tester
• Models #BA227, #BA327 & #BA427 with Thermal Printer & USB Port
also test Start-Stop batteries • Battery range: 100 to 1,700 CCA
Battery
Testing
Item # Voltages System Capacity Printer • Voltmeter: 9-15 Volts DC
Battery test displays:
Testing
SOL-BA9 12V 12V 40-1200 CCA No $89.15 - Good/Replace/Recharge-Retest
- Measured battery CCA rating after test
SOL-BA227 12V 12V 10-1400 CCA Yes $374.15 Alternator test displays:
- Good/Low/High
SOL-BA327 6/12V 12-24V 40-2000 CCA Yes $580.95 - Average/Max/Min loaded and no load test
- Vehicle ground test
SOL-BA427 6/12V 12-24V 40-3000 CCA Yes $639.05 • Tests flooded, AGM, Gel Cell, Enhanced Flooded (Start/Stop Batteries)
• Stores last 250 test series • 10 line LCD display
ESI-726 $509 55
Digital Battery & Electrical System 307020133 30702135
Analyzer with Printer (BST-560S) (BST-860S)
• Tests 6 & 12 Volt batteries and 12V Start/Stop battery test
• Tests 12 & 24 Volt charging systems Battery System
• Tests Alternator-Starting-Charging systems Testers
• CCA test range: 40 to 2,000 CCA • 6 kinds of tests: Ripple
• Tests starting batteries: regular flooded lead acid , Detection, Battery Test,
AGM flat plate, AGM spiral, VRLA/GEL Electric Current Test,
• Tests Start/Stop batteries: Starter Test, Charging System Test, Voltage Test
EFB (enhanced flooded), AGM flat plate • Measurement standards: CCA, BCI, CA, MCA, JlS, DIN, IEC, EN, SAE, GB
• Rating systems: SAE, EN, DIN, IEC, JIS • Applicable vehicles include car, motorcycles, lawnmowers, and other
gardening machines, Group 31, commercial vehicles 4D/8D
ESI-425 $116 95 Item # LAU-307020133 LAU-307020135
Digital Battery & Model BST-560S BST-860S
Starter Test and
Starter Test and
Electrical System Tester Applicable Rectifier Diode Test Charging System Test
12V Tests
• Batteries tested: 12 Volt
• CCA test range: 200-1,200 CCA Supported 12V Lead-Acid, Gel, Regular Flooded, Gel,
• State of health: actual battery CCA displayed Battery Types AGM, EFB, Lithium AGM, EFB, Lithium
• Rating systems: SAE, DIN, IEC, EN and CA Display on colour screen or Display on colour screen,
• Tests discharged: down to 7V Reports QR scan function built-in printer or
• Battery types tested: QR scan function
Lead Acid, AGM Spiral, AGM Flat, Gel $155.35 $305.55
July – September 2025 | 393
