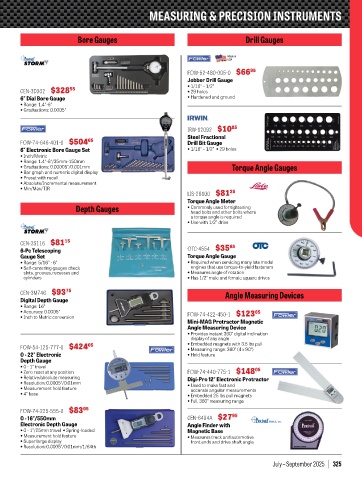

Page 325 - Q3 2025 Stephenson Equipment Catalogue

MEASURING & PRECISION INSTRUMENTS

Bore Gauges Drill Gauges

Made in
USA
FOW-52-480-005-0 $66 95
Jobber Drill Gauge
CEN-3D302 $328 55 • 1/16" – 1/2"
• 29 holes
6" Dial Bore Gauge • Hardened and ground
• Range: 1.4"-6"
• Graduations: 0.0005"

IRW-12092 $10 85
FOW-74-646-401-0 $504 65 Steel Fractional
Drill Bit Gauge
6" Electronic Bore Gauge Set • 1/16" – 1/2" • 29 holes
• Inch/Metric
• Range: 1.4"-6"/35mm-150mm
• Graduations: 0.00005"/0.001mm Torque Angle Gauges
• Bar graph and numeric digital display
• Preset with recall
• Absolute/Incremental measurement
• Min/Max/TIR
LIS-28100 $81 35
Torque Angle Meter
Depth Gauges • Commonly used for tightening
head bolts and other bolts where
a torque angle is required
• Use with 1/2" drive

CEN-3S116 $81 15
6-Pc Telescoping OTC-4554 $35 65
Gauge Set Torque Angle Gauge
• Range: 5/16" - 6" • Required when servicing many late model
• Self-centering gauges check engines that use torque-to-yield fasteners
slots, grooves, recesses and • Measures angle of rotation
cylinders • Has 1/2" male and female square drives

CEN-3M746 $93 75 Angle Measuring Devices
Digital Depth Gauge
• Range: 16"
• Accuracy: 0.0005" FOW-74-422-450-1 $123 65
• Inch to Metric conversion
Mini-MAG Protractor Magnetic
Angle Measuring Device
• Provides instant 360° digital inclination
display of any angle
FOW-54-125-777-0 $424 05 • Embedded magnets with 3.5 lbs pull
• Measuring range: 360° (4 x 90°)
0 - 22" Electronic • Hold feature
Depth Gauge
• 0 - 1" travel 05
• Zero reset at any position FOW-74-440-775-1 $148
• Relative/absolute measuring Digi-Pro 12" Electronic Protractor
• Resolution: 0.0005"/0.01mm • Used to make fast and
• Measurement hold feature accurate angular measurements
• 4" base • Embedded 25 lbs pull magnets
• Full, 360° measuring range
FOW-74-225-555-0 $83 05
0 - 16"/550mm CEN-6494A $27 95
Electronic Depth Gauge Angle Finder with
• 0 - 1"/25mm travel • Spring-loaded Magnetic Base
• Measurement hold feature • Measures truck and automotive
• Super large display front ends and drive shaft angle
• Resolution: 0.0005"/0.01mm/1/64th

July – September 2025 | 325
