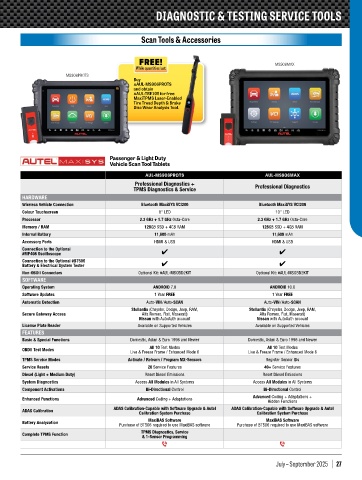

Page 27 - Q3 2025 Stephenson Equipment Catalogue
P. 27
DIAGNOSTIC & TESTING SERVICE TOOLS@
DIAGNOSTIC & TESTING SERVICE TOOLS
Scan Tools & Accessories
MS906MAX
MS906PROTS
Buy
#AUL-MS906PROTS
and obtain
#AUL-TBE100 for free:
MaxiTPMS Laser-Enabled
Tire Tread Depth & Brake
Disc Wear Analysis Tool.
Passenger & Light Duty
Vehicle Scan Tool Tablets
AUL-MS906PROTS AUL-MS906MAX
Professional Diagnostics + Professional Diagnostics
TPMS Diagnostics & Service
HARDWARE
Wireless Vehicle Connection Bluetooth MaxiSYS VCI200 Bluetooth MaxiSYS VCI200
Colour Touchscreen 8" LED 10" LED
Processor 2.3 GHz + 1.7 GHz Octa-Core 2.3 GHz + 1.7 GHz Octa-Core
Memory / RAM 128GB SSD + 4GB RAM 128GB SSD + 4GB RAM
Internal Battery 11,600 mAh 11,600 mAh
Accessory Ports HDMI & USB HDMI & USB
Connection to the Optional 4 4
#MP408 Oscilloscope
Connection to the Optional #BT506 4 4
Battery & Electrical System Tester
Non-OBDII Connectors Optional Kit: #AUL-MSOBD2KIT Optional Kit: #AUL-MSOBD2KIT
SOFTWARE
Operating System ANDROID 7.0 ANDROID 10.0
Software Updates 1 Year FREE 1 Year FREE
Automatic Detection Auto-VIN / Auto-SCAN Auto-VIN / Auto-SCAN
Stellantis (Chrysler, Dodge, Jeep, RAM, Stellantis (Chrysler, Dodge, Jeep, RAM,
Secure Gateway Access Alfa Romeo, Fiat, Maserati) Alfa Romeo, Fiat, Maserati)
Nissan with AutoAuth account Nissan with AutoAuth account
License Plate Reader Available on Supported Vehicles Available on Supported Vehicles
FEATURES
Basic & Special Functions Domestic, Asian & Euro 1996 and Newer Domestic, Asian & Euro 1996 and Newer
OBDII Test Modes All 10 Test Modes All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6 Live & Freeze Frame / Enhanced Mode 6
TPMS Service Modes Activate / Relearn / Program MX-Sensors Register Sensor IDs
Service Resets 26 Service Features 40+ Service Features
Diesel (Light + Medium Duty) Reset Diesel Emissions Reset Diesel Emissions
System Diagnostics Access All Modules in All Systems Access All Modules in All Systems
Component Activations Bi-Directional Control Bi-Directional Control
Advanced Coding + Adaptations +
Enhanced Functions Advanced Coding + Adaptations
Hidden Functions
ADAS Calibration-Capable with Software Upgrade & Autel ADAS Calibration-Capable with Software Upgrade & Autel
ADAS Calibration
Calibration System Purchase Calibration System Purchase
MaxiBAS Software MaxiBAS Software
Battery Analyzation
Purchase of BT506 required to use MaxiBAS software Purchase of BT506 required to use MaxiBAS software
TPMS Diagnostics, Service
Complete TPMS Function
& 1-Sensor Programming
P P
