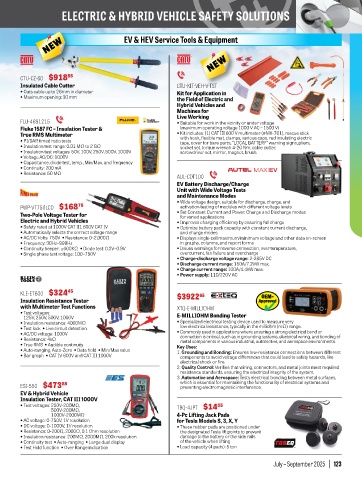

Page 123 - Q3 2025 Stephenson Equipment Catalogue

ELECTRIC & HYBRID VEHICLE SAFETY SOLUTIONS

EV & HEV Service Tools & Equipment

CTU-CZ-60 $918 85 P
Insulated Cable Cutter CTU-KIT-VEH-V-TST
• Cuts cable up to 26mm in diameter Kit for Application in
• Maximum opening: 30 mm the Field of Electric and
Hybrid Vehicles and
Machines for
FLU-4691215 P Live Working
• Suitable for work in the vicinity or under voltage
Fluke 1587 FC – Insulation Tester & (maximum operating voltage 1000 V AC – 1500 V)
True RMS Multimeter • Kit includes: (1) CAT III 600 V multimeter (#MX-701), rescue stick
• PI/DAR timed ratio tests with hook, flexible mat, clamps, various caps, red insulating electric
tape, cover for bare parts, "LOCAL BATTERY" warning signs, pliers,
• Insulation test range: 0.01 MΩ to 2 GΩ socket set, torque wrench 4-20 Nm, cable cutter,
• Insulation test voltages: 50V, 100V, 250V, 500V, 1000V screwdriver set, mirror, magnet, brush

• Voltage AC/DC: 1000V
• Capacitance, diode test, temp., Min/Max, and frequency
• Continuity: 200 mA MAXIEV
• Resistance: 50 MΩ AUL-CDT100 P
EV Battery Discharge/Charge
Unit with Wide Voltage Tests
and Maintenance Modes
PWP-VT750LCD $168 75 • Wide voltage design, suitable for discharge, charge, and
activation testing of modules with different voltage levels
Two-Pole Voltage Tester for • Set Constant Current and Power, Charge and Discharge modes
for varied applications
Electric and Hybrid Vehicles • Improves charging efficiency by ensuring full charge
• Safety rated at 1000V CAT III, 600V CAT IV • Optimize battery pack capacity with constant current discharge,
• Automatically selects the correct voltage range and charge modes
• AC/DC Volts: 750V • Resistance: 0~2,000Ω • Displays single-cell maximum/minimum voltage and other data on-screen
• Frequency: 30Hz~999Hz in graphs, columns, and report forms
• Continuity beeper: ≤600KΩ • Diode test: 0.3V~0.9V • Issues warnings for reverse connection, over temperature,
• Single phase test voltage: 100~750V overcurrent, fan failure and overcharge
• Charge-discharge voltage range: 2-285V DC
• Discharge current range: 150A/7.2kW max.
• Charge current range: 100A/4.4kW max.
• Power supply: 110/220V AC

KLE-ET600 $324 45 $3922 65
OEM-
Insulation Resistance Tester Approved
with Multimeter Test Functions XTQ-E-MILLIOHM 4
• Test voltages: E-MILLIOHM Bonding Tester
125V, 250V, 500V, 1000V
• Insulation resistance: 4000MΩ • Specialized electrical testing device used to measure very
• Test lock • Live circuit detection low electrical resistance, typically in the milliohm (mΩ) range.
• AC/DC voltage: 1000V • Commonly used in applications where ensuring a strong electrical bond or
• Resistance: 4kΩ connection is critical, such as in grounding systems, electrical wiring, and bonding of
metal components in various industrial, automotive, and aerospace environments.
• True RMS • Audible continuity Key Uses:
• Auto-ranging, Auto-Zero • Data hold • Min/Max value 1. Grounding and Bonding: Ensures low-resistance connections between different
• Bar graph • CAT IV 600V and CAT III 1000V components to avoid voltage differences that could lead to safety hazards, like
electrical shock or fire.
2. Quality Control: Verifies that wiring, connectors, and metal joints meet required
resistance standards, ensuring the electrical integrity of the system.
3. Automotive and Aerospace: Tests electrical bonding between metal surfaces,
ESI-550 $473 85 which is essential for maintaining the functionality of electrical systems and
preventing electromagnetic interference.
EV & Hybrid Vehicle
Insulation Tester, CAT III 1000V
• Test voltages: 250V-200MΩ, TBQ-4JPT $14 35
500V-200MΩ,
1000V-2000MΩ 4-Pc Lifting Jack Pads
• AC voltage: 0-750V, 1V resolution for Tesla Models S, 3, X, Y
• DC voltage: 0-1000V, 1V resolution • These rubber pads are positioned under
• Resistance: 0-200Ω, 2000Ω, 0.1 Ohm resolution the designated Tesla lift points to prevent
• Insulation resistance: 200MΩ, 2000MΩ, 200k resolution damage to the battery or the side rails
• Continuity test • Auto-ranging • Large dual display of the vehicle when lifting
• Test Hold function • Over Range indication • Load capacity (4 pads): 5 ton
July – September 2025 | 123
