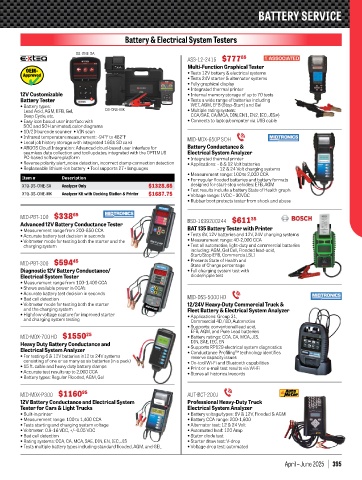

Page 395 - Q1 2025 Stephenson Equipment Catalogue

BATTERY SERVICE

Battery & Electrical System Testers

DS-ONE-SA
ASS-12-2415 $777 85
Multi-Function Graphical Tester
OEM-
Approved • Tests 12V battery & electrical systems
• Tests 24V starter & alternator systems
4 • Fully graphical display
• Integrated thermal printer
12V Customizable • Internal memory storage of up to 70 tests
Battery Tester • Tests a wide range of batteries including
• Battery types: WET, AGM, EFB (Stop-Start) and Gel
Lead Acid, AGM, EFB, Gel, DS-ONE-MK • Multiple rating system:
Deep Cycle, etc. CCA/SAE, CA/MCA, DIN, EN1, EN2, IEC, JIS#)
• Easy icon based user interface with • Connects to laptop/computer via USB cable
SOC and SOH animated, color diagrams
• 1D/2D barcode scanner • VIN scan
• Infrared temperature measurement: -94°F to 482°F MID-MDX-650P SOH P
• Local job history storage with integrated 16Gb SD card
• ARGOS Cloud Integration: Advanced cloud-based user interface for Battery Conductance &
seamless data collection and tool updates, integrated with the OPTIMUS Electrical System Analyzer
PC-based software platform • Integrated thermal printer
• Reverse polarity alert, noise detection, incorrect clamp connection detection • Applications: - 6 & 12 Volt batteries
• Replaceable lithium-ion battery • Tool supports 27+ languages - 12 & 24 Volt charging systems
• Measurement range: 100 to 2,000 CCA
Item # Description • For regular flooded batteries and battery formats
designed for start-stop vehicles: EFB, AGM
XTQ-DS-ONE-SA Analyzer Only $1328.65 • Test results include a battery State of Health graph
XTQ-DS-ONE-MK Analyzer Kit with Docking Station & Printer $1687.75 • Voltage range: 1VDC – 30VDC
• Rubber boot protects tester from shock and abuse
MID-PBT-100 $338 65 BSD-1699200244 $611 35
Advanced 12V Battery Conductance Tester
• Measurement range from 200-850 CCA BAT 135 Battery Tester with Printer
• Accurate battery test decision in seconds • Tests 6V, 12V batteries and 12V, 24V charging systems
• Voltmeter mode for testing both the starter and the • Measurement range: 40-2,000 CCA
charging system • Test all automotive, light-duty and commercial batteries
including: AGM, Gel Cell, Flooded lead-acid,
Start/Stop EFB, Commercial, SLI
MID-PBT-300 $594 45 • Presents State of Health and
State of Charge percentage
Diagnostic 12V Battery Conductance/ • Full charging system test with
Electrical System Tester diode/ripple test
• Measurement range from 100-1,400 CCA
• Shows available power in CCA’s
• Accurate battery test decision in seconds MID-DSS-5000 HD P
• Bad cell detection
• Voltmeter mode for testing both the starter 12/24V Heavy-Duty Commercial Truck &
and the charging system Fleet Battery & Electrical System Analyzer
• High/low voltage capture for improved starter • Applications: Group 31,
and charging system testing Commercial 4D / 8D, Automotive
• Supports: conventional lead acid,
EFB, AGM, and Pure Lead batteries
MID-MDX-700 HD $1550 25 • Battery ratings: CCA, CA, MCA, JIS,
Heavy Duty Battery Conductance and DIN, SAE, IEC, EN
Electrical System Analyzer • Supports RP129 electrical system diagnostics
• Conductance Profiling™ technology identifies
• For testing 6 & 12V batteries in12 to 24V systems reserve capacity issues
consisting of one or as many as six batteries (in a pack) • On-tool Wi-Fi and Bluetooth capabilities
• 15 ft. cable and heavy duty battery clamps • Print or e-mail test results via Wi-Fi
• Accurate test results up to 2,000 CCA • Stores all historical records
• Battery types: Regular Flooded, AGM, Gel
MID-MDX-P300 $1160 95 AUT-BCT-200J P
12V Battery Conductance and Electrical System Professional Heavy-Duty Truck
Tester for Cars & Light Trucks Electrical System Analyzer
• Built-in printer • Battery voltage/types: 6V & 12V, Flooded & AGM
• Measurement range: 100 to 1,400 CCA • Battery CCA range: 200-1,600
• Tests starting and charging system voltage • Alternator test: 12 & 24 Volt
• Voltmeter: 0.9-16 VDC, +/- 0.05 VDC • Automated load: 120 Amp
• Bad cell detection • Stator diode test
• Rating systems: CCA, CA, MCA, SAE, DIN, EN, IEC, JIS • Starter draw test: V-drop
• Tests multiple battery types including standard flooded, AGM, and GEL • Voltage drop test: automated

April – June 2025 | 395
