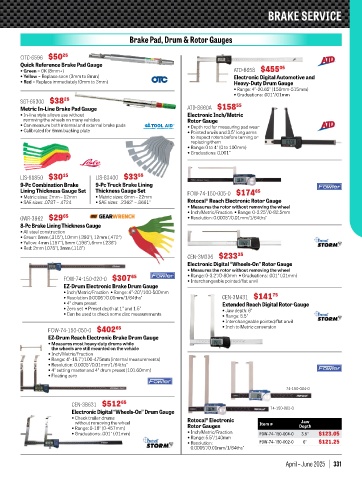

Page 331 - Q1 2025 Stephenson Equipment Catalogue

BRAKE SERVICE

Brake Pad, Drum & Rotor Gauges

OTC-6596 $50 25
Quick Reference Brake Pad Gauge 05
• Green = OK (8mm+) ATD-8658 $455
• Yellow = Replace soon (3mm to 8mm) Electronic Digital Automotive and
• Red = Replace immediately (0mm to 3mm) Heavy-Duty Drum Gauge
• Range: 4"-20.65" (150mm-515mm)
• Graduations: .001"/.01mm
SGT-65300 $38 25
Metric In-Line Brake Pad Gauge ATD-8660A $158 55
• In-line style allows use without Electronic Inch/Metric
removing the wheels on many vehicles Rotor Gauge
• Can measure both internal and external brake pads • Depth rod for measuring pad wear
• Calibrated for 6mm backing plate • Pointed anvils and 3.5" long arms
to inspect rotors before turning or
replacing them
• Range: 0 to 4" (0 to 100mm)
• Graduations: 0.001"

LIS-81850 $30 15 LIS-83400 $33 55
9-Pc Combination Brake 9-Pc Truck Brake Lining
Lining Thickness Gauge Set Thickness Gauge Set FOW-74-150-005-0 $174 65
• Metric sizes: 2mm – 12mm • Metric sizes: 6mm – 22mm
• SAE sizes: .0787 – .4724 • SAE sizes: .2362" – .8661" Rotocal® Reach Electronic Rotor Gauge
• Measures the rotor without removing the wheel
GWR-3962 $29 65 • Inch/Metric/Fraction • Range: 0-3.25"/0-82.5mm
• Resolution: 0.0005"/0.01mm/1/64ths"
8-Pc Brake Lining Thickness Gauge
• All steel construction
• Green: 8mm (.315"), 10mm (.393"), 12mm (.472")
• Yellow: 4mm (.157"), 5mm (.196"), 6mm (.236")
• Red: 2mm (.078"), 3mm (.118")
CEN-3M336 $233 35
Electronic Digital “Wheels-On” Rotor Gauge
• Measures the rotor without removing the wheel
FOW-74-150-020-0 $307 65 • Range: 0-3.2"/0-80mm • Graduations: .001" (.01mm)
• Interchangeable pointed/flat anvil
EZ-Drum Electronic Brake Drum Gauge
• Inch/Metric/Fraction • Range: 4"-20"/100-500mm 75
• Resolution 0.0005"/0.01mm/1/64ths" CEN-3M431 $141
• 4" drum preset Extended Reach Digital Rotor Gauge
• Zero set • Preset depth at 1" and 1.5" • Jaw depth: 6"
• Can be used to check some disc measurements • Range: 5.5"
• Interchangeable pointed/flat anvil
FOW-74-150-050-0 $402 65 • Inch to Metric conversion
EZ-Drum Reach Electronic Brake Drum Gauge
• Measures most heavy-duty drums while
the wheels are still mounted on the vehicle
• Inch/Metric/Fraction
• Range: 4"-18.7"/100-475mm (internal measurements)
• Resolution: 0.0005"/0.01mm/1/64ths"
• 4" setting master and 4" drum preset (101.60mm)
• Floating zero

74-150-004-0
CEN-3B631 $512 65
Electronic Digital “Wheels-On” Drum Gauge 74-150-002-0
• Check trailer drums Rotocal® Electronic
without removing the wheel Item # Jaw
• Range: 0-18" (0-457mm) Rotor Gauges Depth
• Graduations: .001" (.01mm) • Inch/Metric/Fraction FOW-74-150-004-0 3.5" $123.05
• Range: 5.5"/140mm
• Resolution: FOW-74-150-002-0 6" $121.25
0.0005"/0.01mm/1/64ths"
April – June 2025 | 331
