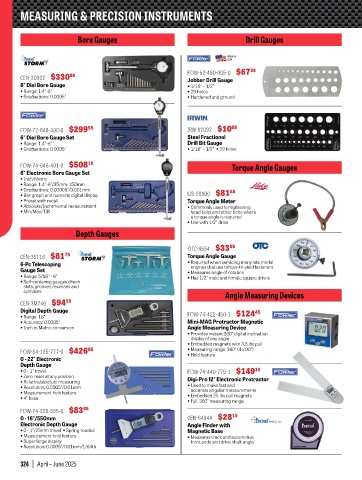

Page 324 - Q1 2025 Stephenson Equipment Catalogue

MEASURING & PRECISION INSTRUMENTS

Bore Gauges Drill Gauges

Made in
USA
FOW-52-480-005-0 $67 35
CEN-3D302 $330 85 Jobber Drill Gauge
6" Dial Bore Gauge • 1/16" – 1/2"
• Range: 1.4"-6" • 29 holes
• Graduations: 0.0005" • Hardened and ground

FOW-72-646-400-0 $299 55 IRW-12092 $10 05
6" Dial Bore Gauge Set Steel Fractional
• Range: 1.4"-6" Drill Bit Gauge
• Graduations: 0.0005" • 1/16" – 1/2" • 29 holes

FOW-74-646-401-0 $508 15 Torque Angle Gauges
6" Electronic Bore Gauge Set
• Inch/Metric
• Range: 1.4"-6"/35mm-150mm
• Graduations: 0.00005"/0.001mm LIS-28100 $81 85
• Bar graph and numeric digital display
• Preset with recall Torque Angle Meter
• Absolute/Incremental measurement • Commonly used for tightening
• Min/Max/TIR head bolts and other bolts where
a torque angle is required
• Use with 1/2" drive
Depth Gauges

OTC-4554 $33 05
CEN-3S116 $81 75 Torque Angle Gauge
6-Pc Telescoping • Required when servicing many late model
engines that use torque-to-yield fasteners
Gauge Set • Measures angle of rotation
• Range: 5/16" - 6" • Has 1/2" male and female square drives
• Self-centering gauges check
slots, grooves, recesses and
cylinders Angle Measuring Devices
CEN-3M746 $94 35
Digital Depth Gauge FOW-74-422-450-1 $124 45
• Range: 16"
• Accuracy: 0.0005" Mini-MAG Protractor Magnetic
• Inch to Metric conversion Angle Measuring Device
• Provides instant 360° digital inclination
display of any angle
• Embedded magnets with 3.5 lbs pull
FOW-54-125-777-0 $426 95 • Measuring range: 360° (4 x 90°)
0 - 22" Electronic • Hold feature
Depth Gauge
• 0 - 1" travel FOW-74-440-775-1 $149 15
• Zero reset at any position Digi-Pro 12" Electronic Protractor
• Relative/absolute measuring
• Resolution: 0.0005"/0.01mm • Used to make fast and
• Measurement hold feature accurate angular measurements
• 4" base • Embedded 25 lbs pull magnets
• Full, 360° measuring range
FOW-74-225-555-0 $83 65
0 - 16"/550mm CEN-6494A $28 15
Electronic Depth Gauge Angle Finder with
• 0 - 1"/25mm travel • Spring-loaded Magnetic Base
• Measurement hold feature • Measures truck and automotive
• Super large display front ends and drive shaft angle
• Resolution: 0.0005"/0.01mm/1/64th

324 | April – June 2025
