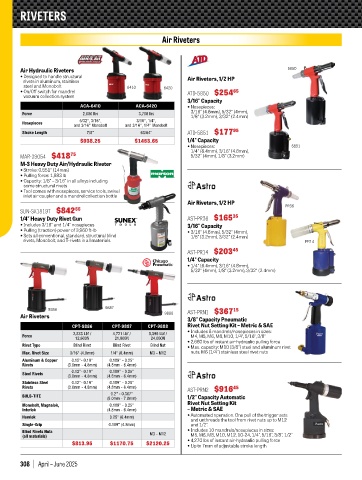

Page 308 - Q1 2025 Stephenson Equipment Catalogue

RIVETERS RIVETERS@

Air Riveters

Air Hydraulic Riveters 5850
• Designed to handle structural Air Riveters, 1/2 HP
rivets in aluminum, stainless
steel and Monobolt 6410 6420
• On/Off switch for mandrel ATD-5850 $254 65
vacuum collection system
3/16" Capacity
ACA-6410 ACA-6420 • Nosepieces:
Force 2,000 lbs 3,700 lbs 3/16" (4.8mm), 5/32" (4mm),
1/8" (3.2mm), 3/32" (2.4mm)
5/32", 3/16", 3/16", 1/4",
Nosepieces and 3/16" Monobolt and 3/16", 1/4" Monobolt
Stroke Length 7/8" 63/64" ATD-5851 $177 95
$938.25 $1453.65 1/4" Capacity
• Nosepieces: 5851
MAR-39054 $418 75 1/4" (6.4mm), 3/16" (4.8mm),
5/32" (4mm), 1/8" (3.2mm)
M-3 Heavy Duty Air/Hydraulic Riveter
• Stroke: 0.551" (14mm)
• Pulling force: 1,983 lb
• Capacity: 1/8" – 3/16" in all alloys including
some structural rivets
• Tool comes with nosepieces, service tools, swivel
inlet air coupler and a mandrel collection bottle
Air Riveters, 1/2 HP
SUN-SX1819T $842 55 PR36
1/4" Heavy Duty Rivet Gun AST-PR36 $165 35
• Includes 3/16" and 1/4" nosepieces 3/16" Capacity
• Pulling (traction) power of 3,960 ft-lb • 3/16" (4.8mm), 5/32" (4mm),
• Sets all conventional, standard, structural blind 1/8" (3.2mm), 3/32" (2.4mm)
rivets, Monobolt, and T-rivets in all materials PR14
AST-PR14 $203 45
1/4" Capacity
• 1/4" (6.4mm), 3/16" (4.8mm),
5/32" (4mm), 1/8" (3.2mm), 3/32" (2.4mm)

9886 9887 AST-PRN1 $367 15
Air Riveters 9888
3/8" Capacity Pneumatic
CPT-9886 CPT-9887 CPT-9888 Rivet Nut Setting Kit – Metric & SAE
Force 2,833 Lbf / 4,721 Lbf / 5,395 Lbf / • Includes 8 mandrels/nosepieces in sizes:
M4, M5, M6, M8, M10, 1/4", 5/16", 3/8"
12,600N 21,000N 24,000N • 2,680 lbs of instant air-hydraulic pulling force
Rivet Type Blind Rivet Blind Rivet Blind Nut • Max. capacity: M10 (3/8") steel and aluminum rivet
Max. Rivet Size 3/16" (4.8mm) 1/4" (6.4mm) M3 - M12 nuts, M6 (1/4") stainless steel rivet nuts
Aluminum & Copper 0.12"- 0.19" 0.189" - 0.25"
Rivets (3.0mm - 4.8mm) (4.8mm - 6.4mm)
Steel Rivets 0.12"- 0.19" 0.189" - 0.25"
(3.0mm - 4.8mm) (4.8mm - 6.4mm)
Stainless Steel 0.12"- 0.19" 0.189" - 0.25"
Rivets (3.0mm - 4.8mm) (4.8mm - 6.4mm) AST-PRN2 $916 45
BULB-TITE 0.2" - 0.307" 1/2" Capacity Automatic
(5.0mm - 7.8mm)
Monobolt, Magnalok, 0.189" - 0.25" Rivet Nut Setting Kit
Interlok (4.8mm - 6.4mm) – Metric & SAE
Hemlok 0.25" (6.4mm) • Automated operation. One pull of the trigger sets
and unthreads the tool from rivet nuts up to M12
Single-Grip 0.189" (4.8mm) and 1/2".
Blind Rivets Nuts M3 - M12 • Includes 10 mandrels/nosepieces in sizes:
(all materials) M5, M6, M8, M10, M12, 10-24, 1/4", 5/16", 3/8", 1/2"
$813.95 $1170.75 $2120.25 • 4,270 lbs of instant air-hydraulic pulling force
• Up to 7mm of adjustable stroke length

308 | April – June 2025
