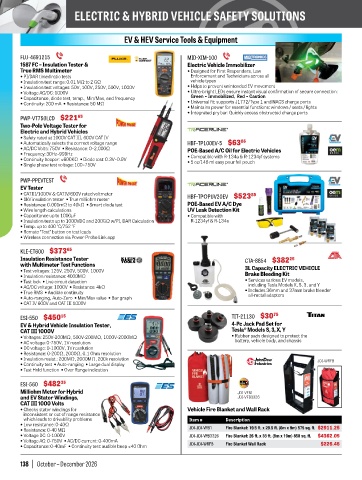

Page 140 - Q4 2026 Stephenson Equipment Catalogue

ELECTRIC & HYBRID VEHICLE SAFETY SOLUTIONS

EV & HEV Service Tools & Equipment

FLU-4691215 P MID-XIM-100 P
1587 FC – Insulation Tester & Electric Vehicle Immobilizer
True RMS Multimeter • Designed for First Responders, Law
• PI/DAR timed ratio tests Enforcement and Technicians across all
• Insulation test range: 0.01 MΩ to 2 GΩ vehicle types
• Insulation test voltages: 50V, 100V, 250V, 500V, 1000V • Helps to prevent unintended EV movement
• Voltage AC/DC: 1000V • Ultra-bright LEDs ensure instant visual confirmation of secure connection:
• Capacitance, diode test, temp., Min/Max, and frequency Green = Immobilized, Red = Caution
• Continuity: 200 mA • Resistance: 50 MΩ • Universal fit: supports J1772/Type 1 and NACS charge ports
• Maintains power for essential functions: windows / seats / lights
PWP-VT750LCD $221 65 • Integrated pry bar: Quickly access obstructed charge ports
Two-Pole Voltage Tester for
Electric and Hybrid Vehicles
• Safety rated at 1000V CAT III, 600V CAT IV
• Automatically selects the correct voltage range HBF-TP100EV-5 $63 85
• AC/DC Volts: 750V • Resistance: 0~2,000Ω POE-Based A/C Oil for Electric Vehicles
• Frequency: 30Hz~999Hz • Compatible with R-134a & R-1234yf systems
• Continuity beeper: ≤600KΩ • Diode test: 0.3V~0.9V
• Single phase test voltage: 100~750V • 5 oz/148 ml easy pour foil pouch

PWP-PPEVTEST P
EV Tester
• CATIII/1000V & CATIV/600V rated voltmeter HBF-TPOPUV20EV $523 85
• 1kV insulation tester • True milliohm meter
• Resistance: 0.001mΩ to 40kΩ • Smart diode test POE-Based EV A/C Dye
• Wire length calculations UV Leak Detection Kit
• Capacitance up to 1000µF • Compatible with
• Insulation tests up to 1000VDC and 200GΩ w/PI, DAR Calculation R-1234yf & R-134a
• Temp. up to 400 °C/752 °F
• Remote “Test” button on test leads
• Wireless connection via Power Probe Link app
KLE-ET600 $373 65
Insulation Resistance Tester CTA-8854 $382 25
with Multimeter Test Functions
• Test voltages: 125V, 250V, 500V, 1000V 3L Capacity ELECTRIC VEHICLE
• Insulation resistance: 4000MΩ Brake Bleeding Kit
• Test lock • Live circuit detection • Services various EV models,
• AC/DC voltage: 1000V • Resistance: 4kΩ including Tesla Models X, S, 3, and Y
• True RMS • Audible continuity • Includes 36mm and 37mm brake bleeder
all-metal adapters
• Auto-ranging, Auto-Zero • Min/Max value • Bar graph
• CAT IV 600V and CAT III 1000V
ESI-550 $450 15 TIT-21130 $30 75
EV & Hybrid Vehicle Insulation Tester, 4-Pc Jack Pad Set for
CAT III 1000V Tesla® Models S, 3, X, Y
• Voltages: 250V-200MΩ, 500V-200MΩ, 1000V-2000MΩ • Rubber pads designed to protect the
• AC voltage: 0-750V, 1V resolution battery, vehicle body, and chassis
• DC voltage: 0-1000V, 1V resolution
• Resistance: 0-200Ω, 2000Ω, 0.1 Ohm resolution
• Insulation resist.: 200MΩ, 2000MΩ, 200k resolution JDI-WRFB
• Continuity test • Auto-ranging • Large dual display
• Test Hold function • Over Range indication
ESI-560 $482 35
Milliohm Meter for Hybrid JDI-VFB1
and EV Stator Windings, JDI-VFB3326
CAT III 1000 Volts
• Checks stator windings for Vehicle Fire Blanket and Wall Rack
inconsistent or out of range resistance
which leads to drivability problems Item # Description
• Low resistance: 0-40Ω Fire Blanket: 19.5 ft. x 29.5 ft. (6m x 9m) 575 sq. ft. $2911.25
• Resistance: 0-40 MΩ JDI-JDI-VFB1
• Voltage DC: 0-1000V JDI-JDI-VFB3326 Fire Blanket: 26 ft. x 33 ft. (8m x 10m) 858 sq. ft. $4362.05
• Voltage AC: 0-750V • AC/DC current: 0-400mA
• Capacitance: 0-40mF • Continuity test: audible beep ≤40 Ohm JDI-JDI-WRFB Fire Blanket Wall Rack $226.45
