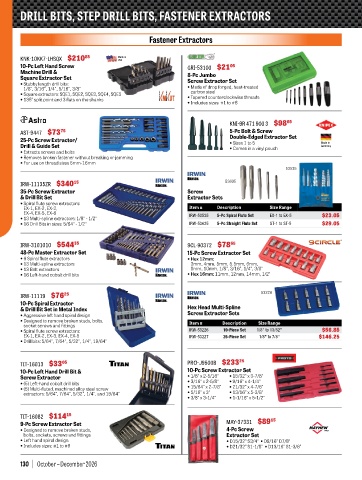

Page 132 - Q4 2026 Stephenson Equipment Catalogue

DRILL BITS, STEP DRILL BITS, FASTENER EXTRACTORS

Fastener Extractors

KNK-10KK7-LHSQX $210 85 Made in
USA
10-Pc Left Hand Screw GRI-53100 $21 05
Machine Drill & 8-Pc Jumbo
Square Extractor Set Screw Extractor Set
• Stubby length drill bits:
1/8", 3/16", 1/4", 5/16", 3/8" • Made of drop forged, heat-treated
• Square extractors: SQE1, SQE2, SQE3, SQE4, SQE5 carbon steel
• 135° split point and 3 flats on the shanks • Tapered counterclockwise threads
• Includes sizes: #1 to #8

KNI-9R 471 900 3 $98 65
AST-9447 $73 75 5-Pc Bolt & Screw
25-Pc Screw Extractor/ Double-Edged Extractor Set Made in
• Sizes 1 to 5
Drill & Guide Set • Comes in a vinyl pouch Germany
• Extracts screws and bolts
• Removes broken fastener without breaking or jamming
• For use on thread sizes 5mm-16mm
53535

IRW-11135ZR $340 15 53635
35-Pc Screw Extractor Screw
& Drill Bit Set Extractor Sets
• Spiral flute screw extractors:
EX-1, EX-2, EX-3, Item # Description Size Range
EX-4, EX-5, EX-6 $23.05
• 13 Multi-spline extractors: 1/8" - 1/2" IRW-53535 5-Pc Spiral Flute Set EX-1 to EX-5
• 16 Drill Bits in sizes: 5/64" - 1/2" IRW-53635 5-Pc Straight Flute Set ST-1 to ST-5 $29.05

IRW-3101010 $544 35 9CL-90372 $78 65
48-Pc Master Extractor Set 15-Pc Screw Extractor Set
• 6 Spiral flute extractors • Hex 12mm:
• 13 Multi-spline extractors 3mm, 4mm, 5mm, 5.5mm, 6mm,
• 13 Bolt extractors 8mm, 10mm, 1/8", 3/16", 1/4", 3/8"
• 16 Left-hand cobalt drill bits • Hex 16mm: 11mm, 12mm, 14mm, 1/2"

IRW-11119 $76 25 53226
10-Pc Spiral Extractor
& Drill Bit Set in Metal Index Hex Head Multi-Spline
• Aggressive left hand spiral design Screw Extractor Sets
• Designed to remove broken studs, bolts, Item # Description Size Range
socket screws and fittings
• Spiral flute screw extractors: IRW-53226 10-Piece Set 1/8" to 13/32" $56.85
EX-1, EX-2, EX-3, EX-4, EX-5 IRW-53227 25-Piece Set 1/8" to 7/8" $146.25
• Drill bits: 5/64", 7/64", 5/32", 1/4", 19/64"

TIT-16013 $33 05 PRO-J9500B $233 25
10-Pc Left Hand Drill Bit & 10-Pc Screw Extractor Set
Screw Extractor • 1/8" x 2-5/16" • 15/32" x 3-7/8"
• (5) Left-hand cobalt drill bits • 3/16" x 2-5/8" • 9/16" x 4-1/4"
• (5) Multi-fluted, machined alloy steel screw • 15/64" x 2-7/8" • 21/32" x 4-7/8"
extractors: 5/64", 7/64", 5/32", 1/4", and 19/64" • 5/16" x 3" • 13/16" x 5-3/8"
• 3/8" x 3-1/4" • 1-1/16" x 5-1/2"

TIT-16082 $114 15
9-Pc Screw Extractor Set MAY-37331 $89 15
• Designed to remove broken studs, 4-Pc Screw
bolts, sockets, screws and fittings Extractor Set
• Left hand spiral design • D15/32" S3/4" • D9/16" D7/8"
• Includes sizes: #1 to #9 • D21/32" S1-1/8" • D13/16" S1-3/8"

130 | October – December 2026
