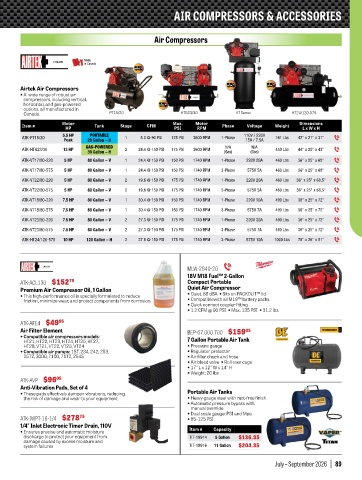

Page 89 - Q2 2026 Stephenson Equipment Catalogue

AIR COMPRESSORS & ACCESSORIES@
AIR COMPRESSORS & ACCESSORIES

Air Compressors

Made
in Canada

Airtek Air Compressors
• A wide range of robust air
compressors, including vertical,
horizontal, and gas-powered
options, all manufactured in
Canada. PT15/20 HTG23/30 VT Series HT24/120-575

Item # Motor Tank Stage CFM Max. Motor Phase Voltage Weight Dimensions
HP PSI RPM L x W x H
5.5 HP PORTABLE 110V / 220V
ATK-PT15/20 1 5.3 @ 90 PSI 125 PSI 3600 RPM 1-Phase 161 Lbs 42" x 21" x 31" P
Peak 20 Gallon – H 15A / 7.5A
ATK-HTG23/30 13 HP GAS-POWERED 2 24.4 @ 150 PSI 175 PSI 3600 RPM N/A N/A 450 Lbs 44" x 20" x 43" P
30 Gallon – H (Gas) (Gas)
ATK-VT17/80-220 5 HP 80 Gallon – V 1 24.4 @ 150 PSI 150 PSI 1740 RPM 1-Phase 220V 20A 460 Lbs 36" x 25" x 68" P
ATK-VT17/80-575 5 HP 80 Gallon – V 1 24.4 @ 150 PSI 150 PSI 1740 RPM 3-Phase 575V 5A 460 Lbs 36" x 25" x 68" P
ATK-VT22/80-220 5 HP 80 Gallon – V 2 19.6 @ 150 PSI 175 PSI 1740 RPM 1-Phase 220V 20A 460 Lbs 36" x 25" x 68.5" P
ATK-VT22/80-575 5 HP 80 Gallon – V 2 19.6 @ 150 PSI 175 PSI 1740 RPM 3-Phase 575V 5A 460 Lbs 36" x 25" x 68.5" P
ATK-VT18/80-220 7.5 HP 80 Gallon – V 1 30.4 @ 150 PSI 150 PSI 1740 RPM 1-Phase 220V 30A 490 Lbs 36" x 25" x 72" P
ATK-VT18/80-575 7.5 HP 80 Gallon – V 1 30.4 @ 150 PSI 150 PSI 1740 RPM 3-Phase 575V 7A 490 Lbs 36" x 25" x 72" P
ATK-VT23/80-220 7.5 HP 80 Gallon – V 2 27.3 @ 150 PSI 175 PSI 1740 RPM 1-Phase 220V 30A 490 Lbs 36" x 25" x 72" P
ATK-VT23/80-575 7.5 HP 80 Gallon – V 2 27.3 @ 150 PSI 175 PSI 1740 RPM 3-Phase 575V 7A 490 Lbs 36" x 25" x 72" P
ATK-HT24/120-575 10 HP 120 Gallon – H 2 37.8 @ 150 PSI 175 PSI 1740 RPM 3-Phase 575V 10A 1000 Lbs 78" x 26" x 51" P

MLW-2840-20 P
18V M18 Fuel™ 2-Gallon
ATK-ACL130 $152 75 Compact Portable
Premium Air Compressor Oil, 1 Gallon Quiet Air Compressor
• This high-performance oil is specially formulated to reduce • Quiet, 68 dBA • Sits on PACKOUT™ lid
friction, minimize wear, and protect components from corrosion • Compatiblewith all M18™ battery packs
• Quick connect coupler fitting
• 1.2 CFM @ 90 PSI • Max. 135 PSI • 31.2 lbs
ATK-AFE4 $49 95
Air Filter Element BEP-67.000.700 $159 05
• Compatible air compressors models:
HT21, HT22, HT23, HT24, HT25, HT27, 7 Gallon Portable Air Tank
HT28, VT21, VT22, VT23, VT24 • Pressure gauge
• Compatible air pumps: 15T, 234, 242, 253, • Regulator protector
25T2, 3000, 7100, 71T2, 2545 • Air filler chuck and hose
• Air bleed valve • Roll over cage
• 17" L x 12" W x 14" H
• Weight: 20 lbs
ATK-AVP $96 05
Anti-Vibration Pads, Set of 4
• These pads effectively dampen vibrations, reducing Portable Air Tanks
the risk of damage and wear to your equipment • Heavy gauge steel with rust-free finish
• Automatic pressure bypass with
manual override
ATK-IWPT-16-1/4 $278 75 • Dual scale gauge: PSI and Mpa
• 85-125 PSI
1/4" Inlet Electronic Timer Drain, 110V
• Ensures precise and automatic moisture Item # Capacity
discharge to protect your equipment from TIT-19914 5 Gallon $136.35
damage caused by excess moisture and
system failures TIT-19916 11 Gallon $204.35

July – September 2026 | 89
