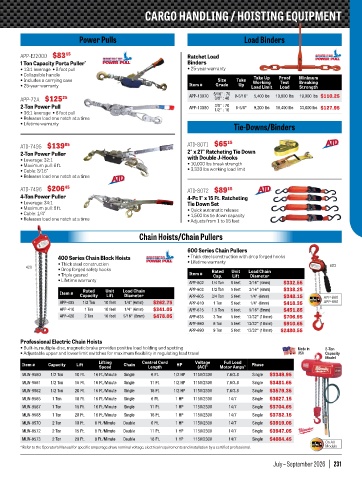

Page 231 - Q2 2026 Stephenson Equipment Catalogue

CARGO HANDLING / HOISTING EQUIPMENT@
CARGO HANDLING / HOISTING EQUIPMENT

Power Pulls Load Binders

APP-EZ2000 $83 15 Ratchet Load
1 Ton Capacity Porta Puller ® Binders
• 13:1 leverage • 8 foot pull • 25-year warranty
• Collapsible handle Take Up Proof Minimum
• Includes a carrying case Size Take Working Test Breaking
• 25-year warranty Item # Grade Up Load Limit Load Strength
APP-72A $125 25 APP-13070 5/16" : 70 9-5/16" 5,400 lbs 10,800 lbs 19,000 lbs $110.25
3/8" : 40
2-Ton Power Pull APP-13080 3/8" : 70 8-5/8" 9,200 lbs 18,400 lbs 33,000 lbs $127.95
• 36:1 leverage • 6 foot pull 1/2" : 10
• Releases load one notch at a time
• Lifetime warranty
Tie-Downs/Binders

ATD-7495 $139 85 ATD-8071 $65 15
2-Ton Power Puller 2" x 27" Ratcheting Tie Down
• Leverage: 32:1 with Double J-Hooks
• Maximum pull: 6 ft. • 10,000 lbs break strength
• Cable: 3/16" • 3,333 lbs working load limit
• Releases load one notch at a time
ATD-7496 $206 45 ATD-8072 $89 15
4-Ton Power Puller 4-Pc 1" x 15 Ft. Ratcheting
• Leverage: 34:1 Tie Down Set
• Maximum pull: 6 ft. • Quick automatic release
• Cable: 1/4" • 1,500 lbs tie down capacity
• Releases load one notch at a time • Adjusts from 1 to 15 feet
Chain Hoists/Chain Pullers

600 Series Chain Pullers
400 Series Chain Block Hoists • Thick steel construction with drop forged hooks
• Thick steel construction • Lifetime warranty 603
420 • Drop forged safety hooks Rated Unit Load Chain
• Triple geared Item # Cap. Lift Diameter
• Lifetime warranty APP-602 1/4 Ton 5 feet 3/16" (4mm) $332.55
Rated
Item # Capacity Unit Load Chain APP-603 1/2 Ton 5 feet 3/16" (4mm) $338.25 APP-660
Lift
Diameter
$348.15
APP-605
3/4 Ton
1/4" (6mm)
5 feet
APP-405 1/2 Ton 10 feet 1/4" (6mm) $262.75 APP-610 1 Ton 5 feet 1/4" (6mm) $418.35 APP-690
APP-410 1 Ton 10 feet 1/4" (6mm) $341.05 APP-615 1.5 Ton 5 feet 5/16" (8mm) $451.85
APP-420 2 Ton 10 feet 5/16" (8mm) $478.05 APP-635 3 Ton 5 feet 13/32" (10mm) $706.95
APP-660 6 Ton 5 feet 13/32" (10mm) $910.65
APP-690 9 Ton 5 feet 13/32" (10mm) $2480.55
Professional Electric Chain Hoists
• Built-in, multiple-disc, magnetic brake provides positive load holding and spotting Made in 2-Ton
• Adjustable upper and lower limit switches for maximum flexibility in regulating load travel USA Capacity
Model
Item # Capacity Lift Lifting Chain Control Cord HP Voltage Full Load Phase
Speed Length (AC)* Motor Amps*
MLW-9560 1/2 Ton 10 Ft. 16 Ft./Minute Single 6 Ft. 1/2 HP 115V/230V 7.6/3.8 Single $3349.95
MLW-9561 1/2 Ton 15 Ft. 16 Ft./Minute Single 11 Ft. 1/2 HP 115V/230V 7.6/3.8 Single $3481.65
MLW-9562 1/2 Ton 20 Ft. 16 Ft./Minute Single 16 Ft. 1/2 HP 115V/230V 7.6/3.8 Single $3579.35
MLW-9565 1 Ton 10 Ft. 16 Ft./Minute Single 6 Ft. 1 HP 115V/230V 14/7 Single $3627.15
MLW-9567 1 Ton 15 Ft. 16 Ft./Minute Single 11 Ft. 1 HP 115V/230V 14/7 Single $3704.65
MLW-9568 1 Ton 20 Ft. 16 Ft./Minute Single 16 Ft. 1 HP 115V/230V 14/7 Single $3782.15
MLW-9570 2 Ton 10 Ft. 8 Ft./Minute Double 6 Ft. 1 HP 115V/230V 14/7 Single $3919.05
MLW-9572 2 Ton 15 Ft. 8 Ft./Minute Double 11 Ft. 1 HP 115V/230V 14/7 Single $3947.05
MLW-9573 2 Ton 20 Ft. 8 Ft./Minute Double 16 Ft. 1 HP 115V/230V 14/7 Single $4084.45
On All
* Refer to the Operator’s Manual for specific amperage draw, nominal voltage, electrical requirements and installation by a certified professional. Models
July – September 2026 | 231
