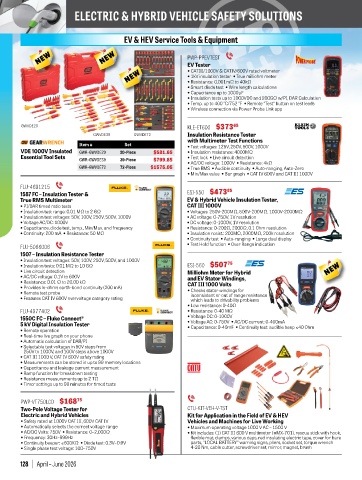

Page 128 - Q2 2026 Stephenson Equipment Catalogue
P. 128
ELECTRIC & HYBRID VEHICLE SAFETY SOLUTIONS
EV & HEV Service Tools & Equipment
PWP-PPEVTEST P
EV Tester
• CATIII/1000V & CATIV/600V rated voltmeter
• 1kV insulation tester • True milliohm meter
• Resistance: 0.001mΩ to 40kΩ
• Smart diode test • Wire length calculations
• Capacitance up to 1000µF
• Insulation tests up to 1000VDC and 200GΩ w/PI, DAR Calculation
• Temp. up to 400 °C/752 °F • Remote “Test” button on test leads
• Wireless connection via Power Probe Link app
GWVDE20 KLE-ET600 $373 65
GWVDE39 GWVDE72 Insulation Resistance Tester
with Multimeter Test Functions
Item # Set • Test voltages: 125V, 250V, 500V, 1000V
VDE 1000V Insulated GWR-GWVDE20 20-Piece $581.65 • Insulation resistance: 4000MΩ
Essential Tool Sets GWR-GWVDE39 39-Piece $799.85 • Test lock • Live circuit detection
GWR-GWVDE72 72-Piece $1575.05 • AC/DC voltage: 1000V • Resistance: 4kΩ
• True RMS • Audible continuity • Auto-ranging, Auto-Zero
• Min/Max value • Bar graph • CAT IV 600V and CAT III 1000V
FLU-4691215 P
1587 FC – Insulation Tester & ESI-550 $473 85
True RMS Multimeter EV & Hybrid Vehicle Insulation Tester,
• PI/DAR timed ratio tests CAT III 1000V
• Insulation test range: 0.01 MΩ to 2 GΩ • Voltages: 250V-200MΩ, 500V-200MΩ, 1000V-2000MΩ
• Insulation test voltages: 50V, 100V, 250V, 500V, 1000V • AC voltage: 0-750V, 1V resolution
• Voltage AC/DC: 1000V • DC voltage: 0-1000V, 1V resolution
• Capacitance, diode test, temp., Min/Max, and frequency • Resistance: 0-200Ω, 2000Ω, 0.1 Ohm resolution
• Continuity: 200 mA • Resistance: 50 MΩ • Insulation resist.: 200MΩ, 2000MΩ, 200k resolution
• Continuity test • Auto-ranging • Large dual display
FLU-5066006 P • Test Hold function • Over Range indication
1507 – Insulation Resistance Tester
• Insulation test voltages: 50V, 100V, 250V, 500V, and 1000V 75
• Insulation tests: 0.01 MΩ to 10 GΩ ESI-560 $507
• Live circuit detection Milliohm Meter for Hybrid
• AC/DC voltage: 0.1V to 600V and EV Stator Windings,
• Resistance: 0.01 Ω to 20.00 kΩ CAT III 1000 Volts
• Provides lo-ohms earth-bond continuity (200 mA)
• Remote test probe • Checks stator windings for
inconsistent or out of range resistance
• Features CAT IV 600V overvoltage category rating which leads to drivability problems
• Low resistance: 0-40Ω
FLU-4977402 P • Resistance: 0-40 MΩ
1550C FC – Fluke Connect® • Voltage DC: 0-1000V
5 kV Digital Insulation Tester • Voltage AC: 0-750V • AC/DC current: 0-400mA
• Capacitance: 0-40mF • Continuity test: audible beep ≤40 Ohm
• Remote operation
• Real-time live graph on your phone
• Automatic calculation of DAR/PI
• Selectable test voltages in 50V steps from
250V to 1000V, and 100V steps above 1000V
• CAT III 1000 V, CAT IV 600V safety rating
• Measurements can be stored in up to 99 memory locations
• Capacitance and leakage current measurement
• Ramp function for breakdown testing
• Resistance measurements up to 2 TΩ
• Timer settings up to 99 minutes for timed tests
PWP-VT750LCD $168 75 P
Two-Pole Voltage Tester for CTU-KIT-VEH-V-TST
Electric and Hybrid Vehicles Kit for Application in the Field of EV & HEV
• Safety rated at 1000V CAT III, 600V CAT IV Vehicles and Machines for Live Working
• Automatically selects the correct voltage range • Maximum operating voltage 1000 V AC – 1500 V
• AC/DC Volts: 750V • Resistance: 0~2,000Ω • Kit includes: (1) CAT III 600 V multimeter (#MX-701), rescue stick with hook,
• Frequency: 30Hz~999Hz flexible mat, clamps, various caps, red insulating electric tape, cover for bare
• Continuity beeper: ≤600KΩ • Diode test: 0.3V~0.9V parts, "LOCAL BATTERY" warning signs, pliers, socket set, torque wrench
• Single phase test voltage: 100~750V 4-20 Nm, cable cutter, screwdriver set, mirror, magnet, brush
128 | April – June 2026
