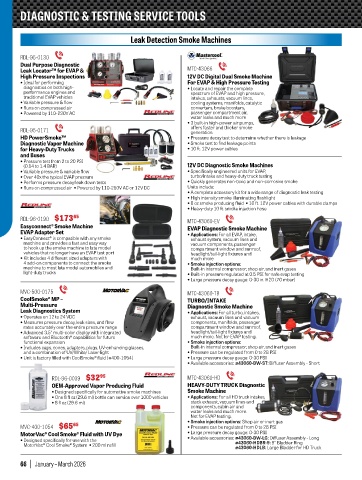

Page 66 - Q1 2026 Stephenson Equipment Catalogue

DIAGNOSTIC & TESTING SERVICE TOOLS

Leak Detection Smoke Machines

RDL-95-0130 P
Dual Purpose Diagnostic MTC-43066 P
Leak Locator™ for EVAP &
High Pressure Inspections 12V DC Digital Dual Smoke Machine
• Ideal for performing For EVAP & High Pressure Testing
diagnostics on both high- • Locate and repair the complete
performance engines and spectrum of EVAP and high pressure,
traditional EVAP vehicles intakes, exhausts, vacuum lines,
• Variable pressure & flow cooling systems, manifolds, catalytic
• Runs on compressed air converters, brake boosters,
• Powered by 110-230V AC passenger compartment air,
water leaks and much more
• 3 built-in high-power air pumps,
RDL-95-0171 P offers faster and thicker smoke
generation
HD PowerSmoke™ • Pressure decay test to determine whether there is leakage
Diagnostic Vapor Machine • Smoke test to find leakage points
for Heavy-Duty Trucks • 10 ft. 12V power cables
and Buses
• Pressure test from 2 to 20 PSI
(0.14 to 1.4 BAR) 12V DC Diagnostic Smoke Machines
• Variable pressure & variable flow • Specifically engineered units for EVAP,
• Over 40x the typical EVAP pressure turbo/intake and heavy-duty truck testing
• Performs pressure decay/leak down tests • Quickly generates non-toxic and non-corrosive smoke
• Runs on compressed air • Powered by 110-250V AC or 12V DC Units include:
• A complete accessory kit for a wide range of diagnostic leak testing
• High intensity smoke illuminating flashlight
• 8 oz smoke producing fluid • 10 ft. 12V power cables with durable clamps
• Heavy-duty 10 ft. smoke injection hose
RDL-96-0190 $173 65 MTC-43060-EV P
Easyconnect® Smoke Machine EVAP Diagnostic Smoke Machine
EVAP Adapter Set • Applications: For all EVAP, intake,
• EasyConnect® is compatible with any smoke exhaust system, vacuum lines and
machine and provides a fast and easy way vacuum components, passenger
to hook up the smoke machine to late model compartment window and sunroof,
vehicles that no longer have an EVAP test port headlight/tail-light fixtures and
• Kit includes 4 different sized adapters with much more
4 add-on components to connect the smoke • Smoke injection options:
machine to most late model automobiles and Built-in internal compressor, shop air, and inert gases
light-duty trucks • Built-in pressure regulated at 0.5 PSI for safe evap testing
• Large pressure decay gauge: 0-30 in. H2O (70 mbar)
MVC-500-0175 P MTC-43060-TB P
CoolSmoke® MP – TURBO/INTAKE
Multi-Pressure Diagnostic Smoke Machine
Leak Diagnostics System • Applications: For all turbo, intakes,
• Operates on 12 to 24 VDC exhaust, vacuum lines and vacuum
• Measures pressure decay, leak sizes, and flow components, manifolds, passenger
rates accurately over the entire pressure range compartment window and sunroof,
• Advanced 3.5" multi-color display with integrated headlight/tail-light fixtures and
software and Bluetooth® capabilities for future much more. Not for EVAP testing.
functional expansion • Smoke injection options:
• Includes caps, cones, adapters, plugs, UV-enhancing glasses, Built-in internal compressor, shop air, and inert gases
and a combination of UV/White/ Laser light • Pressure can be regulated from 0 to 28 PSI
• Unit is factory filled with CoolSmoke® fluid (#400-1054) • Large pressure decay gauge: 0-30 PSI
• Available accessories: #43060-DW-ST: Diffuser Assembly - Short
RDL-96-0039 $32 95 MTC-43060-HD P
OEM-Approved Vapor Producing Fluid HEAVY-DUTY TRUCK Diagnostic
• Designed specifically for automotive smoke machines Smoke Machine
• One 8 fl oz (29.6 ml) bottle can service over 1000 vehicles • Applications: For all HD truck intakes,
• 8 fl oz (29.6 ml) stack exhaust, vacuum lines and
components, cabin air and
water leaks and much more.
Not for EVAP testing.
MVC-400-1054 $65 65 • Smoke injection options: Shop air or inert gas
• Pressure can be regulated from 0 to 28 PSI
MotorVac® Cool Smoke® Fluid with UV Dye • Large pressure decay gauge: 0-30 PSI
• Designed specifically for use with the • Available accessories: #43060-DW-LG: Diffuser Assembly - Long
#43060-HDBR-9: 9" Bladder Ring
MotorVac® Cool Smoke® System • 200 ml refill
#43060-HDLB: Large Bladder for HD Truck
66 | January – March 2026
