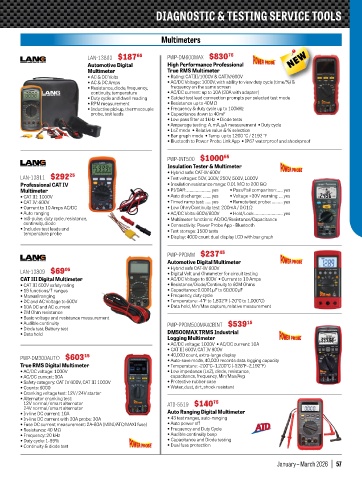

Page 57 - Q1 2026 Stephenson Equipment Catalogue

DIAGNOSTIC & TESTING SERVICE TOOLS

Multimeters

LAN-13803 $187 65 PWP-DM600MAX $830 75
Automotive Digital High Performance Professional
Multimeter True RMS Multimeter
• AC & DC Volts • Rating: CATIII/1000V & CATIV/600V
• AC & DC Amps • AC/DC Voltage: 1000V, with ability to view duty cycle (time/%) &
• Resistance, diode, frequency, frequency on the same screen
continuity, temperature • AC/DC current: up to 10A (30A with adapter)
• Duty cycle and dwell reading • Guided test lead connection prompts per selected test mode
• RPM measurement • Resistance up to 40MΩ
• Inductive pickup, thermocouple • Frequency & duty cycle up to 100kHz
probe, test leads • Capacitance down to 40mF
• Low pass filter at 1kHz • Diode tests
• Amperage testing: A, mA, μA measurement • Duty cycle
• LoZ mode • Relative value & % selection
• Bar graph mode • Temp. up to 1200 °C / 2192 °F
• Bluetooth to Power Probe Link App • IP67 waterproof and shockproof

PWP-INT500 $1000 55
Insulation Tester & Multimeter
LAN-13811 $292 25 • Hybrid safe: CAT-IV 600V
• Test voltages: 50V, 100V, 250V, 500V, 1000V
Professional CAT IV • Insulation resistance range: 0.01 MΩ to 200 GΩ
Multimeter • PI/DAR: ..........................yes • Pass/Fail comparison: ......yes
• CAT III: 1000V • Auto discharge: .........yes • Voltage >30V warning: ....yes
• CAT IV: 600V • Timed ramp test: .......yes • Remote test probe: ............yes
• Current to 10 Amps AC/DC • Low Ohm/Continuity test: 200mA / 0.01Ω
• Auto ranging • AC/DC Volts: 600V/600V • Hold/Lock: ..............................yes
• mS-pulse, duty cycle, resistance, • Multimeter functions: AC/DC/Resistance/Capacitance
continuity, diode • Connectivity: Power Probe App - Bluetooth
• Includes test leads and • Test storage: 1500 tests
temperature probe
• Display: 4000 count dual display LCD with bar graph
PWP-PPDMM $237 45
Automotive Digital Multimeter
LAN-13809 $69 05 • Hybrid safe CAT-IV 600V
• Digital Volt and Ohmmeter for circuit testing
CAT III Digital Multimeter • AC/DC Voltage to 600V • Current to 10 Amps
• CAT III 600V safety rating • Resistance/Diode/Continuity to 60M Ohms
• 19 functions/7 ranges • Capacitance: 0.0001µF to 60,000µF
• Manual ranging • Frequency, duty cycle
• DC and AC Voltage to 600V • Temperature: -4°F to 1,832°F (-20°C to 1,000°C)
• 10A DC and AC current • Data hold, Min/Max capture, relative measurement
• 2M Ohm resistance
• Basic voltage and resistance measurement
• Audible continuity PWP-PPDM500MAXCBINT $539 15
• Diode test, Battery test
• Data hold DM500MAX TRMS Industrial
Logging Multimeter
• AC/DC voltage: 1000V • AC/DC current: 10A
• CAT III 600V, CAT IV 600V
PWP-DM300AUTO $603 15 • 40,000 count, extra-large display
• Auto-save mode, 40,000 records data logging capacity
True RMS Digital Multimeter • Temperature: -200°C~1,200°C (-328°F~2,192°F)
• AC/DC voltage: 1000V • Low impedance (LoZ), diode, resistance,
• AC/DC current: 30A capacitance, frequency, Min/Max/Avg
• Safety category: CAT IV 600V, CAT III 1000V • Protective rubber case
• Counts: 6000 • Water, dust, dirt, shock resistant
• Cranking voltage test: 12V / 24V starter
• Alternator cranking test:
12V normal / smart alternator ATD-5519 $140 75
24V normal / smart alternator
• In-line DC current: 10A Auto Ranging Digital Multimeter
• In-line DC current with 30A probe: 30A • 43 test ranges, auto-ranging
• Fuse DC current measurement: 2A-80A (MINI/ATC/MAXI fuse) • Auto power off
• Resistance: 40 MΩ • Frequency and Duty Cycle
• Frequency: 20 kHz • Audible continuity beep
• Duty cycle: 1-99% • Capacitance and Diode testing
• Continuity & diode test • Dual fuse protection

January – March 2026 | 57
