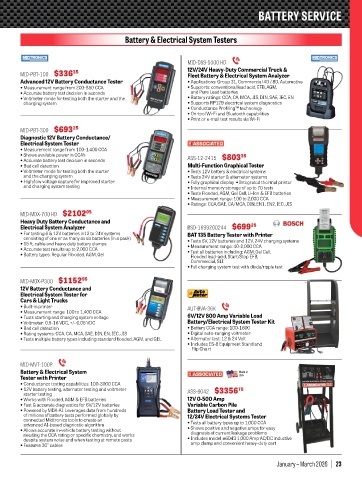

Page 23 - Q1 2026 Stephenson Equipment Catalogue

BATTERY SERVICE

Battery & Electrical System Testers

MID-DSS-5000 HD P

MID-PBT-100 $336 35 12V/24V Heavy-Duty Commercial Truck &
Fleet Battery & Electrical System Analyzer
Advanced 12V Battery Conductance Tester • Applications: Group 31, Commercial 4D / 8D, Automotive
• Measurement range from 200-850 CCA • Supports: conventional lead acid, EFB, AGM,
• Accurate battery test decision in seconds and Pure Lead batteries
• Voltmeter mode for testing both the starter and the • Battery ratings: CCA, CA, MCA, JIS, DIN, SAE, IEC, EN
charging system • Supports RP129 electrical system diagnostics
• Conductance Profiling™ technology
• On-tool Wi-Fi and Bluetooth capabilities
• Print or e-mail test results via Wi-Fi
MID-PBT-300 $693 25
Diagnostic 12V Battery Conductance/
Electrical System Tester
• Measurement range from 100-1,400 CCA
• Shows available power in CCA’s ASS-12-2415 $803 35
• Accurate battery test decision in seconds
• Bad cell detection Multi-Function Graphical Tester
• Voltmeter mode for testing both the starter • Tests 12V battery & electrical systems
and the charging system • Tests 24V starter & alternator systems
• High/low voltage capture for improved starter • Fully graphical display • Integrated thermal printer
and charging system testing • Internal memory storage of up to 70 tests
• Tests Flooded, AGM, Gel Cell, Li-Ion & EFB batteries
• Measurement range: 100 to 2,000 CCA
• Ratings: CCA/SAE, CA/MCA, DIN, EN1, EN2, IEC, JIS
MID-MDX-700 HD $2102 05
Heavy Duty Battery Conductance and
Electrical System Analyzer BSD-1699200244 $699 25
• For testing 6 & 12V batteries in12 to 24V systems BAT 135 Battery Tester with Printer
consisting of one or as many as six batteries (in a pack) • Tests 6V, 12V batteries and 12V, 24V charging systems
• 15 ft. cable and heavy duty battery clamps • Measurement range: 40-2,000 CCA
• Accurate test results up to 2,000 CCA • Test all batteries including: AGM, Gel Cell,
• Battery types: Regular Flooded, AGM, Gel Flooded lead-acid, Start/Stop EFB,
Commercial, SLI
• Full charging system test with diode/ripple test
MID-MDX-P300 $1152 95
12V Battery Conductance and
Electrical System Tester for
Cars & Light Trucks
• Built-in printer AUT-BVA-36K P
• Measurement range: 100 to 1,400 CCA
• Tests starting and charging system voltage 6V/12V 800 Amp Variable Load
• Voltmeter: 0.9-16 VDC, +/- 0.05 VDC Battery/Electrical System Tester Kit
• Bad cell detection • Battery CCA range: 100-1600
• Rating systems: CCA, CA, MCA, SAE, DIN, EN, IEC, JIS • Digital auto-ranging voltmeter
• Tests multiple battery types including standard flooded, AGM, and GEL • Alternator test: 12 & 24 Volt
• Includes ES-8 Equipment Stand and
Flip Chart
MID-MVT-100P P
Battery & Electrical System Made in
Tester with Printer USA
• Conductance testing capabilities: 100-3000 CCA
• 12V battery testing, alternator testing and voltmeter ASS-6042 $3356 75
starter testing
• Works with Flooded, AGM & EFB batteries 12V 0-500 Amp
• Fast & accurate diagnostics for 6V/12V batteries Variable Carbon Pile
• Powered by MDX-AI: Leverages data from hundreds Battery Load Tester and
of millions of battery tests performed globally by 12/24V Electrical Systems Tester
connected Midtronics tools to create an • Tests all battery types up to 1,000 CCA
advanced AI-based diagnostic algorithm
• Allows accurate in-vehicle battery testing without • Shows positive and negative amps for easy
needing the CCA rating or specific chemistry, and works diagnosis of current leakage problems
despite system noise and when testing at remote posts • Includes model #6043 1,000 Amp AC/DC inductive
• Features 30" cables amp clamp and convenient heavy-duty cart
