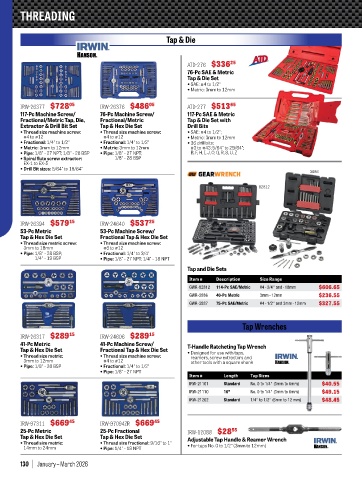

Page 130 - Q1 2026 Stephenson Equipment Catalogue

THREADING THREADING@

Tap & Die

ATD-276 $336 25
76-Pc SAE & Metric
Tap & Die Set
• SAE: #4 to 1/2"
• Metric: 3mm to 12mm

IRW-26377 $728 05 IRW-26376 $486 05 ATD-277 $513 65
117-Pc Machine Screw/ 76-Pc Machine Screw/ 117-Pc SAE & Metric
Fractional/Metric Tap, Die, Fractional/Metric Tap & Die Set with
Extractor & Drill Bit Set Tap & Hex Die Set Drill Bits
• Thread size machine screw: • Thread size machine screw: • SAE: #4 to 1/2";
#4 to #12 #4 to #12 • Metric: 3mm to 12mm
• Fractional: 1/4" to 1/2" • Fractional: 1/4" to 1/2" • 36 drill bits:
• Metric: 3mm to 12mm • Metric: 3mm to 12mm #3 to #43; 5/64" to 29/64";
• Pipe: 1/8" - 27 NPT; 1/8" - 28 BSP • Pipe: 1/8" - 27 NPT; B, F, H, I, J, O, Q, R, S, U, Z
• Spiral flute screw extractor: 1/8" - 28 BSP
EX-1 to EX-5
• Drill Bit sizes: 5/64" to 19/64"
3886

82812

IRW-26394 $579 15 IRW-24640 $537 25
53-Pc Metric 53-Pc Machine Screw/
Tap & Hex Die Set Fractional Tap & Hex Die Set
• Thread size metric screw: • Thread size machine screw:
3mm to 18mm #6 to #12
• Pipe: 1/8" - 28 BSP; • Fractional: 1/4" to 3/4"
1/4" - 19 BSP • Pipe: 1/8" - 27 NPT; 1/4" - 18 NPT
Tap and Die Sets

Item # Description Size Range
GWR-82812 114-Pc SAE/Metric #4 - 3/4" and - 18mm $606.65
GWR-3886 40-Pc Metric 3mm - 12mm $236.55
GWR-3887 75-Pc SAE/Metric #4 - 1/2" and 3mm - 12mm $327.55

Tap Wrenches
IRW-26317 $289 15 IRW-24606 $289 15
41-Pc Metric 41-Pc Machine Screw/ T-Handle Ratcheting Tap Wrench
Tap & Hex Die Set Fractional Tap & Hex Die Set
• Thread size metric: • Thread size machine screw: • Designed for use with taps,
reamers, screw extractors and
3mm to 12mm #4 to #12 other tools with a square shank
• Pipe: 1/8" - 28 BSP • Fractional: 1/4" to 1/2"
• Pipe: 1/8" - 27 NPT
Item # Length Tap Sizes
IRW-21101 Standard No. 0 to 1/4" (3mm to 6mm) $40.55
IRW-21110 10" No. 0 to 1/4" (3mm to 6mm) $49.15
IRW-21202 Standard 1/4" to 1/2" (6mm to 12 mm) $48.45

IRW-97311 $669 45 IRW-97094ZR $669 45
25-Pc Metric 25-Pc Fractional IRW-12088 $28 55
Tap & Hex Die Set Tap & Hex Die Set Adjustable Tap Handle & Reamer Wrench
• Thread size metric: • Thread size fractional: 9/16" to 1"
14mm to 24mm • Pipe: 1/4" - 18 NPT • For taps No. 0 to 1/2" (3mm to 12mm)

130 | January – March 2026
